It’s no surprise that most dealer’s or so called basic suspension shops, and part time do-it-your selfers actually know so little about suspension or the tools and procedures to do things right, especially  when it comes to the modern technology.


It is a highly specialized field, that requires expensive  tools and equipment, others seem to fumble through things at your expense, many times by just seat of the pants wing it with “Low” tech or “No” tech approach.



So after 30+years in the industry every day with the best of the best, and years of experience,  we’re here to help.



Through out the year we provide various product seminars for individuals, dealers and college program students that
enjoy learning about the quality and design differences between the products and applications to better understand
various components, procedures, specialty tools and equipment related to the industry to be the best in field.



With over 30 years experience and knowledge in the industry, training and working with the best in the business, we
offer valuable  incite to otherwise unobtainable information.



State of the art technology, products and procedure knowledge has been at the forefront of the company since the
beginning and continues through today to maintain a better understanding of latest products that many have found
to be very beneficial.



We also participate in industry product trade shows and other events that many have found to be very informative.





To find out more about Tools, Product Seminars, detailed specific  or  TECHNICAL  INFORMATION

Contact:   info@propilotsuspension.com





TECH-TOOLS-PICs



1) Rule #1 ,

     You will need intelligence, knowledge , experience, equipment, tools and cleanliness (and then clean some more)

     or maybe leave it to the professionals.




When Your Hour Meter says 20 its time to do









2)

We did many years of research and found for many reasons these newest 2015 machines are the best of the best.



Andreani Machines are an absolute must for proper suspension, we provide product seminars to utilize these to their fullest, it’s the only way to go.



There are super cool (and expensive) adapters and fixtures for every type and brand of Shock, Cartridge and Steering Dampers, allow  about 10k to set up both types with base adapters for most components.



Ours were had built in San Marino Italy, right down the road from Ferarri, to USA voltage motors so no converters or inverters are needed, just use a Dell computer  hook up and cable and your ready to go.



If you see the inside of these they look like a Formula 1 Car, there’s no way you can make one from  HOME DEPOT! , they have the passion and excellence others don’t, but you still need the proper knowledge and wisdom to know how and where to use these correctly.



Early on in 2015 we have One of only Two of the newest ones currently in the U.S.A. and Ohlins has the other one!



3)

Technology always improves so staying  current with the latest is key,

it trickles down to the older and more basic stuff.

Participating in the Newest Product seminars and trade shows is very important.







4)



 5)



6)

Wp / KTM / PDS /Recommends at a minimum these  Vac machines, they only have One Tank but can add an extra and start at around  $4000.00  each without adapters and need a power inverter for the USA currents  surprisingly the importer still uses his SP3 older Andreani machine.







7)

We Recommend most shops purchase at least two of these and upgrade to the best Odorless fluids so allow about 6k-7k each,  they are fully automated and at the push of a button you can have crystal clear fluid down to the Micron, you never need to see that monthly service guy.     (this Item #3255-9555 would  need to be truck shipped)







8)

We sell various Spring Press Machines that have exact aluminum fixtures to suit most brands to change springs,

A must for any “Remote Hydraulic Preloader” Style Shocks,

Also no need to touch spanners on spanner style shocks, or reset spring preload.

They start at $495.00 plus more adapters as needed   (Order base Item # 3250-5316 $495.00)







9)

We sell the Newest generation Spring Rating and Testing equipment.



The Load Cells should be calibrated occasionally and provide great incite into calculating correct spring values.



Springs should be tested in a more climate controlled room, not extreme cold or variations.



We sell the better 5000lb load cell machines with Fork Spring adapters kits  with optional roll stands and spring tools as well as provide product seminars on how to calculate spring force through the entire stroke of a shock shaft travel as well as peak values to compare what the OEM claimed a rate to be.

(Order Base model item# 3250-7550 $2950.00 )



Fork-Spring-Testing-Load-Cell

 10)

We sell a FORK Spring Upgrade Kit for the above Spring Tester (Order Item# 3250-6550) $595.00



11)

Surprisingly we found even  major suspension companies and publications  not informing their customers about the difference between N/mm and Kg/mm.

They are  Not the Same Thing!

So when talking about springs  it’s best  to clarify that.

An Infinite amount of variables may determine a spring choice,bike geometry, engine placement, fork technology, etc.



Many Modern Forks with a .52N/m may Feel Plusher than a Fork with a .48kg,



(don’t be too stuck on just because you used a .43kg in the mid 90’s your current machine needs that number)



Its getting popular to also field check Front rider sag also, it’s a lot harder to do than the rear but possible to do the front Spring preload /Spring rate calculation.



To be most accurate you would need to minimize seal / bushing stiction,  fork angle, and other possible alignment  issues.



There is a  specific Program for this but the basic idea is to also consider if an internal top out spring is used and what rate that top out spring is within the cartridge or strut and how it actually can effect the actual spring preload.



“Shazzame”! That’s some of the reason why a spring number is only a number in overall feel.



(See below TECH for Sample Program Sheet)



12)

Above pic shows Primary Spring and Compressed Top out Spring Relationship



Fluid LEVEL NOTE:

Some Tuner’s Raise or lower the Fluid level by as little as 15cc (or a couple tablespoons) in each leg .



To reduce or increase firmness mostly in the last final area of the forks travel.



This affects what’s called the “AIR SPRING CHARACTER” (a term to describe the remaining chamber of space in each leg referring to air volume, so the AIR SPRING and The ACTUAL  SPRING do work  in harmony)











13)

We sell SKF Newest low friction Triple Lip seals and Wear parts

(as well as  the Best and most current Kayaba and Showa updated seals)

This SKF material has many advantages over traditional designs,

they are also offered in a PSF ‘HD” for the newest generation of Air Forks.



14)

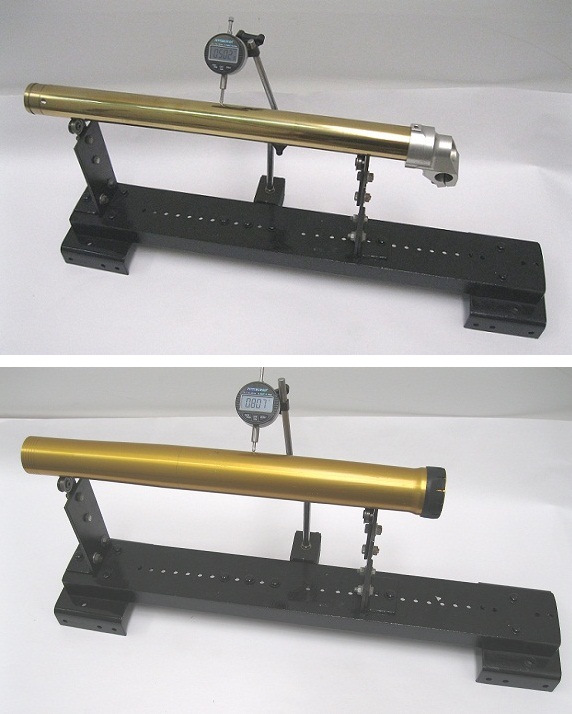

Fork Digital  Truing Stand (Check Inner & Outer Legs separately for straightness)



Adjustable with Gauge Magnetic Indicator and Dual Edge Roller Bearings (Order Item 3250-7565 $495.00)



Check All tubes to make sure they are straight and not bowed is a must


Before Installing Any New Seals and bushings to make sure they are within manufacturers specs.





 15)

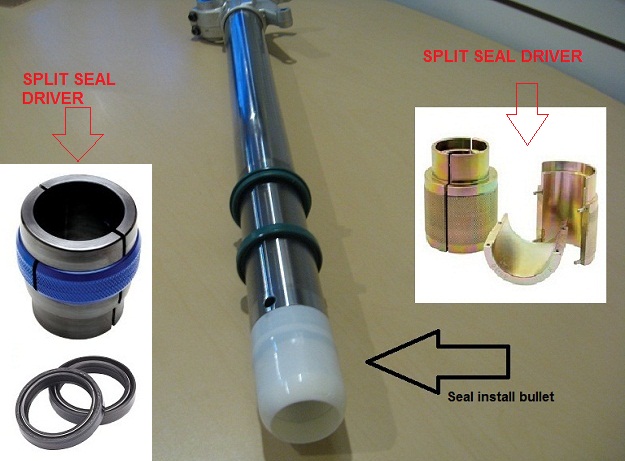

This White Seal and Bushing Install bullet is a Must, We sell  various ones (from 36mm-49mm)


Sometimes you can use a heat gun and even make them better,



For a whats hard to see but an almost SEAMLESS TRANSITION to install Seals  without damage,



They NEED the Correct Seal Prep / Light Special grease formula  as well so new seals settle in properly.



Bushings not shown in pic but bullet tools also very helpful with their install to save their teflon or slick coatings.


We also sell quality SPECIAL ORDER SEAL DRIVER PACKAGES with most Split Seal Drivers needed to press in seals,wiper seals, and bushings correctly.





16)

Many folks are purchasing more than One Spring Rate which now makes sense ,



Some  Track day riders tune for various conditions,  Adventure Riders may choose much heavier set for fully loaded  big journey’s two up then swap back to ride regular season.



The same applies to shock spring rating numbers (N/m and Kg/m  and Lbs/in are Not the Same Number)



below are some examples that may help.



Next thing about Springs to be more in the ballpark (D.I.Y.) info.



(Some Shock Spring A,B,C’s)

You can exactly measure the Free Length of spring (as shown above)  usually in mm, while off shock, then installed on shock which is slightly compressed (example maybe 11mm to 16mm depending on what its going on).



Then once all back together  field check with some pretty exact measurements .



The fully extended  measurement on an arch as axle would travel (record in mm.), then fully settle (meaning you and your stuff two feet up on pegs ) record in mm. “Shazame” that’s  called rider sag, adjust that to be within manufacturers spec (measure again and record in mm. within the acceptable range) , then after in range  check static sag (that’s bike only no rider) to see what you have left (record in mm.)



All of those above things are then considered to see if a Spring RATE  change may be helpful.



They are only as accurate as your measuring skills, body placement and free play in shock mount bearings.



Once within manufacturers range, tuner’s often add or take away a little as a half turn at a time more  or less slight turns  to further benefit their use.



17)



18)

All the new Cartridges need to done on the Vac Machines,way too many places for air to hide, too many little ports, passages, needles, seats and holes by doing them any other way.





These Need to Be done on the Factory vac Machines with the correct fluids and procedures for optimal results.





Ohlins Fluids Must be used in the TTx Struts to Maintain the best ride Quality, without the proper experience and professional procedures, your struts could feel completely different.





Ohlins Ttx Cartridge Fork Fluid

Ohlins 4 Litre jug of Suspension Fluid $ 134.95 ( savings Only 33.73 / litre)



Above it is more cost effective to order 4 litre jug of TTx Cartridge fluid so that’s what we sell, sometimes packaging may change do to Ohlins production.









For basic overview pages 1-12 , 2008-09 and 2010-11, for newer note some tools and parts have changed

TTX _Mx Cartridge Workshop manual_Basic _101









NOTE: Do Not Let Your Ohlins Fall into The Wrong Hands!

red_neck_car

.



Pic-1-Ttx-Cart-Mx

19)

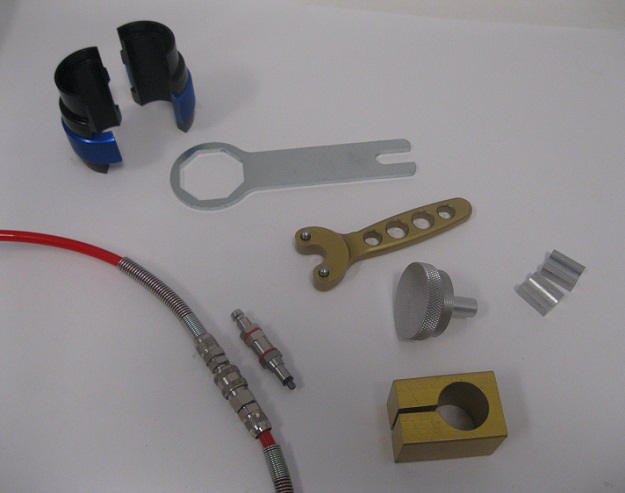

You need the Piston positioning Tools, cap tools, Holding tools and Factory Andreani Vac machines, and the best quality manufacturers fluids for optimal results.



Ohlins TTx Cartridge 2009 FGHO

Above, an old dated set of 2009 , lots have been updated since then.



The Red arrows show some important seals and X-Ring bushings wear parts to do at long term rebuild, a million little important passages and places for air to hide so they need to be finished correctly on a professional machine for best results with Ohlins fluid.





Ohlins-TTx-Cartrideg-Kit-Top-Out-Spring



Above shows how important the “preload tower washers” from 2x to 11x per leg can be working with the “inner top out spring” for excellent results in forks performance with proper outer fluid volume ranges.





New Bitmap Image










20)

Most Shocks and Cartridges have many passages that can only be done with the Vac machines and the correct tools.



Many have multi piston and Shim designs that also require this procedure, especially Wp, PDS, TTx and most shocks.



(There’s No Way you can do these by hand by going up and down with a bottle of any old fluid in a vise in your house!)





21)



22 )

Above is an overly simplified drawing of the TTx Advantages with more directional fluid flow and more equal pressure balance.



23)

Fluid is Very Important , using the Best is like using the best Olive Oil to a master Chef !







24)

Tuners  and D.I.Y folks should know every drop counts.



Often times changing  fluid volume as little as a couple of tablespoons or even 15cc Per Leg may be a noticeable  difference in the air chamber character within the each fork.



Quality additives and ingredients are extremely important to function.



Viscosity index claimed and real index values rated in CSt are often quite unique, a recent study showed some interesting comparison in rating each suspension fluid at what they call 40 degree CSt and 100 degree Cst.

Many brands tested for example called there fluid something like “Very Light” or ‘Light” or a certain  ” #5Wt” and tested much higher or lower in reality.



Most modern suspension fluids actual rating is most accurate by referring to the by CSt @40 ‘ or 100′ comparison.



(Here’s just a sample chart of just 20 “Over the Counter Fluids ” of  over 150 fluids  tested.)





Many variables determine the best ingredients  to performance of the suspension fluids.

Viscosity Index



The Viscosity Index is very important in a suspension oil. The viscosity index (V.I.) of an oil is a number that indicates the effect of temperature changes on the viscosity of the oil.  A low V.I. signifies a relatively large change of viscosity with changes of temperature. In other words, the oil becomes extremely thin at high temperatures and extremely thick at low temperatures. On the other hand, a high V.I. signifies relatively little change in viscosity over a wide temperature range. So specifically with regard to suspension, the greater the VI, the more consistent the damping will be over a large temp change.

ASTM D2270-04 Standard Practice for Calculating Viscosity Index From Kinematic Viscosity at 40 and 100°C

The Viscosity Index is calculated as such:




On a given morning if the ambient temperature may be 21C (70F) a motorcycle fork may run in the 26C (78F) temp range, rear shocks will run in the 65C (150F) range to even (190F) and the rear reservoirs will be around 43C (110F) to(145F).



While motorcycle rear shocks REQUIRE very HIGH  VIs (over 300) to function well over such a huge temperature range, motorcycle forks and bicycles do not.  Anything over 100VI will be serviceable for them, however the newest  fork designs with internal cartridges are much like rear shock designs so the same fluid is often used in them for best results.



Many variables determine the best ingredients  to performance of the suspension fluids.



So just pouring anything into any shock or fork will not provide the intended manufacturers performance.



The ONLY way to professionally get 100% of the air from Shocks and Forks is to use these Machines below.

(SEE BELOW FOR VAc MACHINES DEMO VIDEO’s)



25)



26)





 27)





   post image

28)

Bulk SPECIAL ORDER very high  Quality Valving Shims in various sizes and thicknesses.



29)

We worked with the engineering program students last year at  Columbia University in N.Y. with some assistance on their TTx Ohlins suspension on their Formula SAE College design and build car.



Each semester the students develop an FSAE car,  later they may go on to work industry careers at major OEM’s like Ford, Chevy, Honda,Toyota.



We also participated in the University of Illinois Department of Mechanical and Industrial Engineering Student program a few seasons ago.



30)

These are the University shocks Twin wall TTx Ohlins with both Hi/Lo Rebound and Compression external adjustable, the shock sets have many spring options in 25lb increments.





31)

(Above)This is Ohlins Popular 4 Piston Kit, they are also offered in some application specific kits  (Called the FPK-#)



32)

We sell SPECIAL  ORDER  Tool Kits Like These Basic Starter Fork Tools to fit out your shop.



 33)

Above Tool Kit for these Forks $ 725.72 (as shown #1-7)

Example of Ohlins Fork Tools Above (priced July 2015 subject to change) 48mm

1)1702-04  Required bushing / leg push tool to not overlap leg bushings $203.61
2)1720-48 Seal Bullet/bushing install tool $10.95
3)1797-06  Required cartridge removal tool $154.74
4)0727-02 Cartridge Holding Clamp $88.67
5)1863-01 Compression Adjusting Dismantling Tool $44.66
6)1761-02 Required Cap Tool $112.63
7)4850-02 Required Seal/Bushing Split deep driver $110.46
8) Digital Infrared Thermometer (heat stantion 600’F)NLA





 34)

Nitrogen Filling Gauge Needle type 600psi



35)

This  year we worked with the engineering program students at the  University of Southern California with  TTx Ohlins suspension on their Formula SAE College design and build car.



Each semester the students develop an FSAE car,  later they may go on to work industry careers at major OEM’s like Ford, Chevy, Honda,Toyota.



36)

These are this years Univ. of SoCal’s FSAE Twin Wall TTx Ohlins With both Hi/Lo Adjustable Rebound and Compression, the shocks have spring options in 25lb increments.







37)

Cool Cutaway of a Training Damper so you can see why the correct Vac Machines are the Only way to go.







38)

Air Fork gauge ADAPTER ( a must have  to properly check  air in forks  )



For Example it’s almost impossible to try tuning with manufacturers recommended  6lbs-14lbs increments On The balance and Main chambers with 130psi -145psi  in them with a regular pump and gauge.



You loose more or less then that just taking the gauge off and can hear an unknown amount of  air escaping.


This simple “T-Style” adapter  fits on most pumps and lets you open and close the inner shraeder valve on your forks without air loss like just taking the gauge off does.



The inner “T” pin fully closes or opens the valve before you remove the whole gauge sealing in exactly the pressure you want and has a  tunable longer stem to reach.



Even though  the above OEM pump/gauges  are not that high tech or really accurate, at least you have a much better chance  with the adapter.



Below is a Digital Shock Gauge, they are pretty accurate but $469.00!, you can still fill them slowly with your pump (or separate) by attaching to the back and then have the advantage of reading both gauges as accurate cross check.



(Order item 3256-7550  $469.00)    (Order item 3256-8550 T Adapter set )



39)

Air Forks





  USE the NEWEST SKF HD Air FORK SEALS !



40)

Air Forks (Love ’em or Hate ’em) but must check the multiple air pressures constantly before every ride!

Tired of checking air all day and never feeling the forks you want? see OHLINS TTx fix Below!



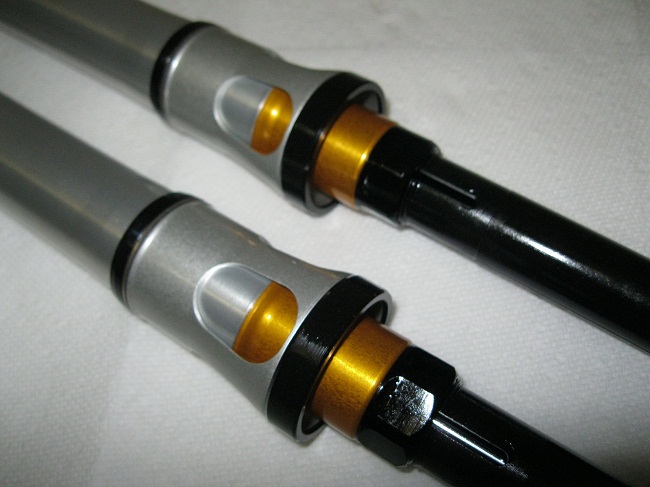

Cartridge Kit MX2010



  Ohlins TTx Twin wall/Twin piston design



41)

Ohlins TTx Cartridge and Spring Kits (100%  reversable /No Machining required)

Above transforms existing  AIR FORKS  into Ohlins TTx Cartridge and Primary Springs similar to whats in the whole Ohlins  TTx 48  RXF Forks.

Many design advantages and unique features  ( see more Details and Pic’s around site )

Ohlins-CArtridge-TTx-Mx





42)

AIR BLEED ~ (shown above)

Before every ride Equalize by removing and replacing the one shown, very similar to any traditional fork for past 30+ years.





REMOTE SPRING PRELOADER’s  (101)

Remote spring preloaders ADD some more preload to the preload you already have on the spring, they just do it easier than turning Spanners in a hard to get to space.



For example, your springs Free Length (Off The Shock) may be about 12mm -15mm Longer than installed (On the Shock)  length, so you would have 12mm-15mm preload on the spring.



The Remote Preloader when FRESH has a unique Ratio Per application so it may add about 6.5mm-to whatever additional preload on the spring for heavier loading.



Some preloaders can add up to about 15mm more  but not as common (and may be a waste?), because the total preload per application and starting preload would be out of range.



The Ohlins traditional preloader (shown below with arrows) will move about that much as shown,



so maybe exposing most all of that hidden spanner under the housing, Some of the other Ohlins Preloaders do more.



43)

The general range of both combined before a spring change may be helpful is about 20mm-23mm total combined.



(So example 14mm preload plus 7mm more=21mm total preload) Some slight variations can apply so not set in stone.



Some folks while the spring is off (Only by using Hydraulic Spring Press Needed) could add a turn to this above double spanner set up so preloader housing would have a new range on the spring to test.(Only if  within manufacturers Recommended Specs and Deflection on spring choice)



REBUILDING PRELOADER’S PROPERLY is super detailed and important, they have their own suspension fluid separate from the main shock absorber damper, they need to be done on a VAc machine to 100%  for best results and function as shown below.



44)

Once they are Vac machined 100% then they should be load test for full range to manufacturers spec shown below with appropriate fixtures.





45)

Load tested and  Maintaining Factory Spec  movement then you know that’s how they should be.



46)







47)

Above Left (inny) above Right (outty) , Seal Bullets are a must to do install without possible damage to quad rings.



4/)

Penske Shocks  &  Custom Axis Seals ,Seal heads ,Special Tools





49)

Through out the Year we do  various Trade Shows and Special Promotional Events and Seminars.





To find out more contact info@propilotsuspension.com





50)



51)





52)



53)





54)



55)



56)

Shown below we have developed specialized adapter kits for most KYB, SHOWA, and other Shocks popular shocks with Bladders and pistons for both forks and shocks!



Pro Pilot Bleed Port Adaptors Showa Kyb Wp Sachs

“No drilling or alterations required”  just like the factory meant it to be.

57)



How hot does your Mx Enduro Gncc Shock get

58)







Ohlins Spring Compressor and Preloader Spanners

59)

Above, once you remove spring, the older style hydraulic remote preloader has a kinked line that should be replaced, the preloader spanner and lock spanner are totally different size than a regular spring spanner and locker.



The preloader has it’s own fluid separate from the shock, the line should not b e loosened or removed or it would need to be fully rebuilt and purged from air.



Preloader spanners also have a lobe to locate clocking where the line is preferred to locate.



13173959_10154995867888561_8160469068438559994_n

60)

Columbia University NY FSAE CAr 2016



12140751_10154902762748561_313268100399577282_n

61)



Ohlins FSAE Shocks

60)

Columbia University FSAE Ohlins TTX Shocks



13178017_10154998471208561_457586610772061631_n

61)



fork-tube-and-shock-body-anodizing-and-functional-hard-coatings

62)



Both gold ones #2 and #3 were a functional hard coat actually done in the same tank but see how different the color varies depending on the minerals like copper in the aluminum casting.



Above, shock bodies used to wear their coatings off back in the day on the inside of the cylinder, a number of body functional hard coats were common.



The fork stantion and leg coatings shown #1 was a light black anodizing type.





ohlins-basic-ttx-cartridge-mx-tools-piston-depth-tool-cap-tool-seal-driver-tool

63)

We are offering a Ohlins TTx Mx BAsic CArtridge tool set on some later models, call with Vin# on cartdrige  fork to verify tools list.
