BMW G450X
BMW G 450x
1)

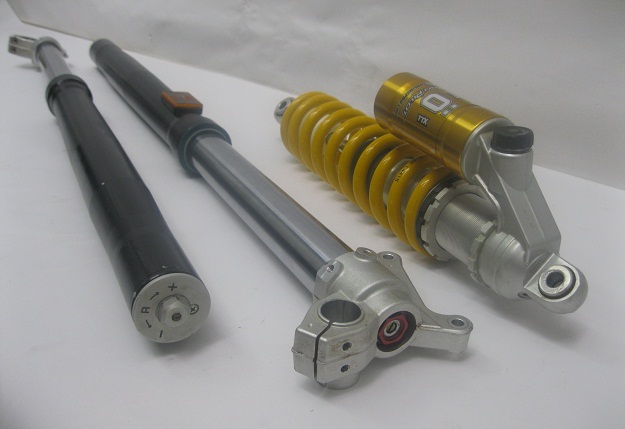

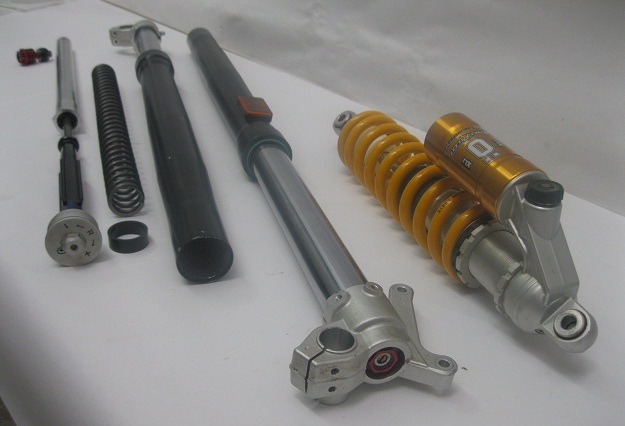

Ohlins BM5380 / PDS series “no link” shock and Marzocchi 45mm Forks
2)
The 45mm Forks have aluminum cartridges with hydraulic anti bottom cones with both tops adjustable rebound and both bottoms adjustable compression damping.
3)
4)
FORKS:
45mm Marz./ claimed 300mm travel (more like 290mm when measure slider) has inner top out springs
About 935mm center axle to top edge black stantion
Top triple clamp about 53mm/ bottom triple clamp about 57mm/
Right Axle Lug 28mm shoulder/ Left axle Lug 24mm / both not threaded so axle uses nut /
Caliper Bracket 94mm holes center apart
