Ktm 690 Enduro R



ktm-690-enduro-r-ohlins

We have a couple of the KT 122 Ohlins shocks left, most everything else is pretty sold out!

KTM_690-Enduro _R Ohlins Suspensionleft, most everything else is sold out.





KTM_690-Enduro _R Ohlins Suspension



1)

Ktm 690 Enduro R , Ohlins has some shocks and New Fork Kits Shown below.

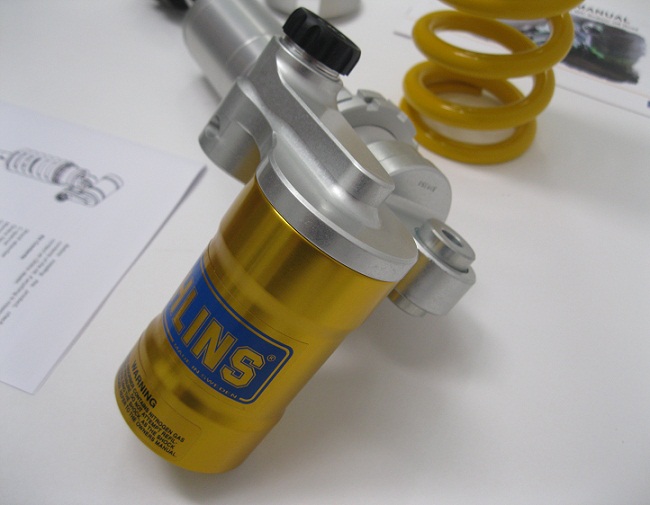

ktm-690r-ohlins-shock-kt122





Our state is the home of  KTM’s 8-Time AMA National Enduro Champion, 3-Time ISDE Gold Medalist, and the XC-1 Atlantic grand Prix Champion among many others including many AMA multi time National Number Motocross racers, and many Adventure Rides including the Pine Barrons 500.



We Know Dirt!

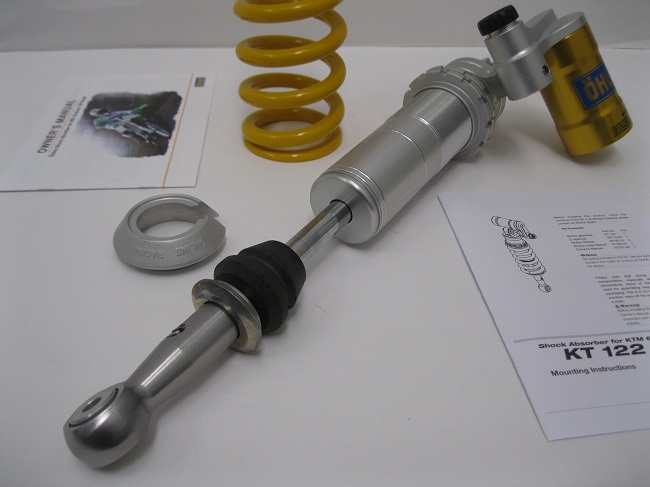

ohlins-kt122

Ohlins KT 122 and KT 123 shocks



Adjustable compression (about 25 clicks) , rebound (about 45 clicks)



Ohlins has a large 46mm body and 16mm shaft.



Ktm 690 Enduro R Ohlins

2)

No machining required on these kits 100% reversible fork cartridge kits.



Ohlins 30mm fork kits that replaces every thing from the cap down to the bottom bolt in the forks.



Ohlins KTM 690 enduro WP Fork kit FKA 108 KTM

3)

Ohlins FKA- 30mm fork kit 2014-2016 WP forks. ALL SOLD-OUT! (Snooze-u-loose!)



Our Leader



The kit has adjustable preload caps full 20mm range with about 20 turns, adjustable compression and rebound.



KTM 1190R Wp Frk IMG_2991

4)

On left (red arrows ) WP stock 22.86mm piston and stamped steel cartridge from the 1970’s.



The Ohlins 30mm on right (blue arrows) 4 port piston and giant cartridge on right.



Ohlins preload adjustable cap gives a monster 20mm range of function! (about 20 turns).



IMG_2984

5)

Stock stamped steel WP cartridge (red arrows) has almost no anti bottom out device, a very straight piece of steel tube with minor taper.



Ohlins (blue arrows) shows tapered anti bottom out cone that is 55mm tall and a 30mm 4 port  Ohlins piston with kit.



KTM 690 Enduro Ohlins 2014 FKA108 IMG_3083

6)

Ohlins Cartridge Kit shown left and the WP stamped steel cartridges from the 1970’s shown right.

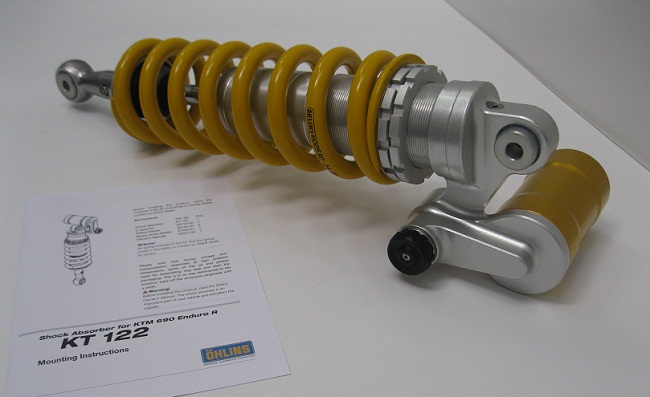

ohlins-kt122-and-kt123-shock-ktm-690r





7)

Ohlins Shock with adjustable compression, rebound and any spring rate choice, they have a heavy duty 46mm body and 16mm shaft.



2012-2016 Ktm 690 Enduro R #KT123 Type S46PR1C1 / shock length is 397.5mm eye-to -eye with 85.5 shaft stroke, sold with any spring choice included (Note OEM KTM part # same shock listed 2012-2016 now).



2009-2011 Ktm 690 Enduro R #KT122 Type S46PR1C1 / shock length is 406mm eye-to -eye with 100.5 shaft stroke, sold with any spring rate choice included.





KTM-690-Enduro-R

8)

 SKF Upgraded seal and bushing kits are a world of improvement.

SKF Seal Bushing Fork Service kits
