Yamaha Tenere Suspension



2016 Yamaha Super tenere Ohlins



Ohlins makes a front and rear matched set unlike other brands that may just offer a rear shock.



The Ohlins Shock is surprisingly affordable and very heavy duty, a large 46mm body and 16mm shaft with adjustable compression, rebound and hydraulic spring preloader and suits a large range of practical use.





1)

Super Popular  TENERE OHLINS YA013 Shock!



With Adjustable Rebound (45 clicks aprox.), Compression (24 clicks aprox.), Preloader (aprox. 24 turns ) 46mm body  and 16mm Shaft, excellent value, function and  to quality.



It’s hard to find a better All Around Shock For the Money!



If a various real world riding from commuting to trail, one and two up and a couple camping journeys, its hard to find any better well rounded shock on the market for this price.





TENERE OHLINS full Production CARTRIDGE and Spring Set Kits

2)

Once you see how well the rear shock works, you’ll want to upgrade the Forks!



The Ohlins Fork Cartridge and spring kit has  50% larger 30mm pistons with externally adjustable fork preload, rebound, and compression with anti bottoming hydraulic cones.

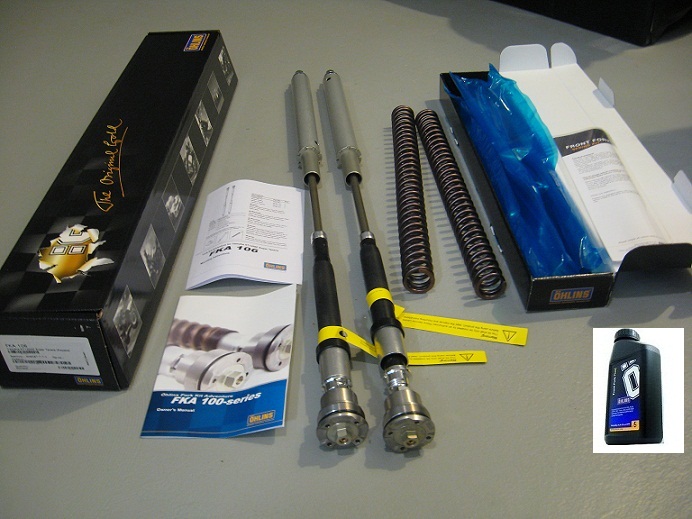

Ohlins Fork Cartridge Kits Adjustable External Spring Preload, Compression and Rebound

3)

TENERE  OHLINS  Fork 30mm  CARTRIDGE Kit  FKA106 and Spring Set Kits (replaces most everything inside fork).



Kit has many Unique Features the standard does not including Adjustable Compression, Rebound and Spring  18 turn Preload all at the Top caps and  special anti bottoming tapered hydraulic cones.







Below shows some info on Customer’s Tenere forks after just two seasons of abuse!~



Super Tenere yam Std Forks 2013 IMG_2861

4)

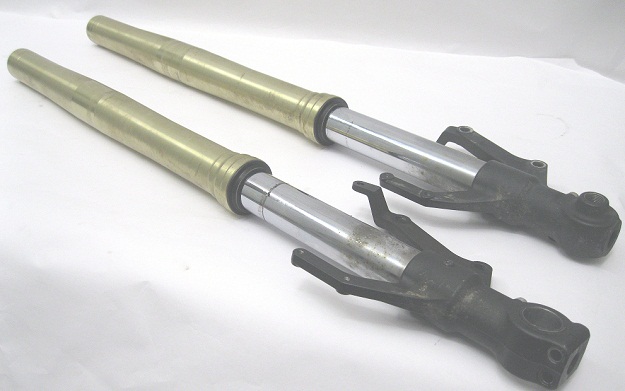

This is a couple season old leaking Tenere Fork, notice the pitting towards the bottoms of the sliders, good reason to keep you bike cleaner than these and not store your bike really muddy as some inners would need to be replaced.





IMG_2863

5)

Above black arrows show the pitting on inner tubes.



Wipers Tenere

6)

Above shows cracked rubber  wipers seals after only two seasons.





IMG_2911

7)

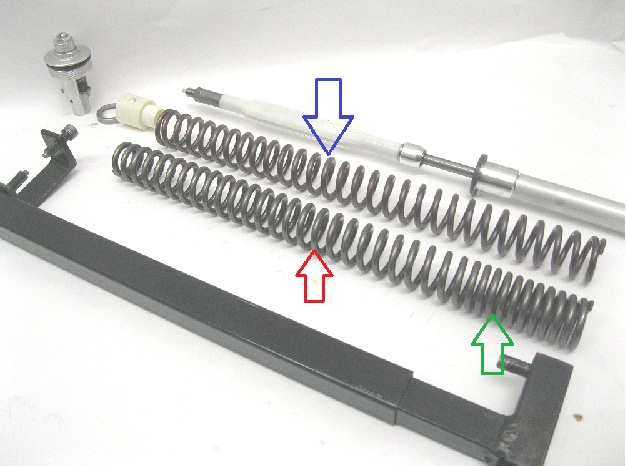

Above standard Tenere fork spring is the progressive coil shown with red arrow, Ohlins spring is blue arrow and requires 5mm more spacer to be used in standard application with standard preload.



The green arrow shows how tight the coil is found on one end of the 7.5″ (190.5mm) travel application.



IMG_2927

8)

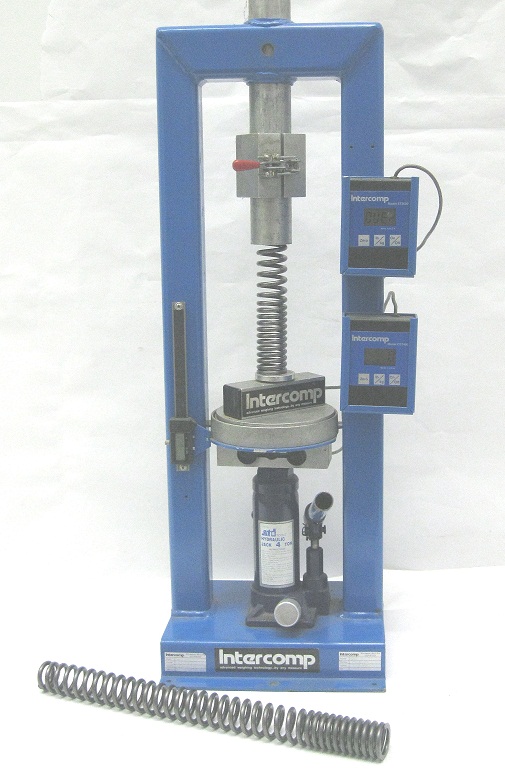

The standard Tenere forks progressive coil spring rates pretty weird !





Ohlins Kit right Std Tenere left IMG_2916

9)

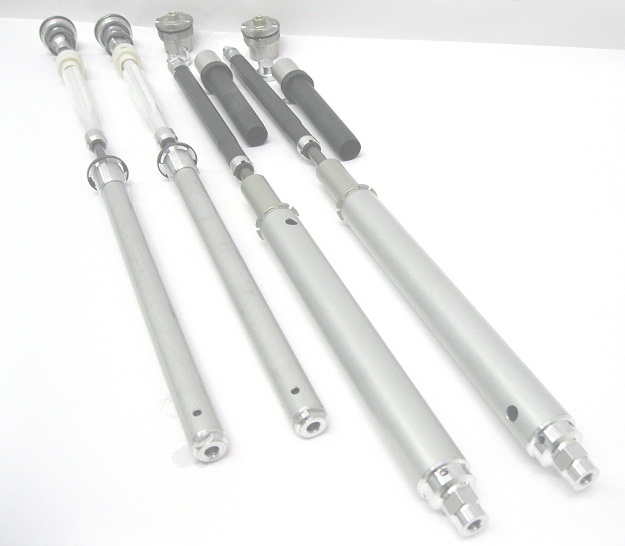

Above right the Ohlins 30mm piston and Cartridge kit they are 50% larger than stock on left, with a 20% larger rebound rod and taller 55mm hydraulic anti bottom cone. The Standard cartridge is a 20mm low flow setup from the 1980’s.



Tenere Compression Piston

10)

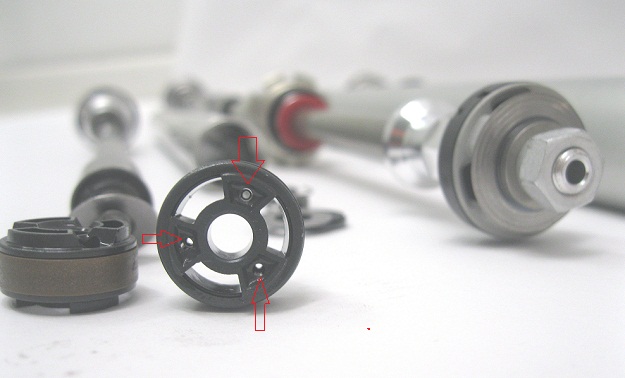

Super dated 20mm fork pistons that come on the Tenere are from decades ago and still found in these bikes today, the red arrows show just how very tiny the standard compression holes are in the Tenere three port 20mm compression piston.



Tenere Forks IMG_2874

11)

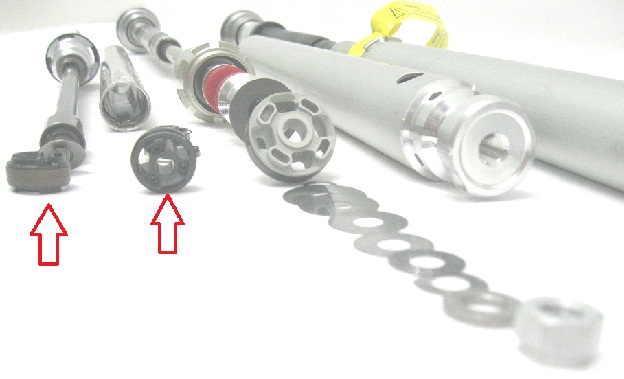

Red arrows are the standard Tenere 20mm fork piston, we saw these from the 1980’s on the offroad side, the new 30mm Ohlins kit is on the right.



12)

You can use an Ohlins prevalved 20mm four piston kit shown above or replace to the 30mm full cartridge with every thing Ohlins from the cap to the bottom bolt.



Ohlins tenere 30mm Fork Kit FKA106

13)

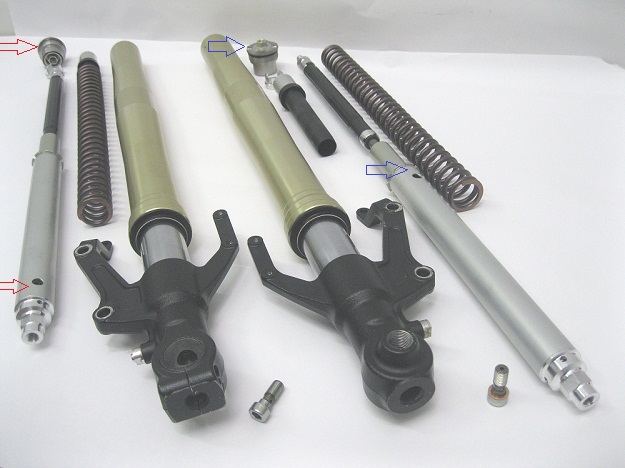

The Ohlins Kit can be owner installed with out any machining and is 100% reversable.



Basically install the Rebound side stuff in the right leg as shown, then the left side compression leg stuff, add fluid which takes less than 1 litre Ohlins fluid to do whole fork set.



SKF Seal Bushing Fork Service kits

14)

SKF fork seals, Wiper seals and bushing kits are a popular option.



Yamaha Tenere Ohlins IMG_2926

15)

Preset your preload on fork cap, and rebound and compression with the 3mm allen as shown in manual.



Ohlins Tenere YA013 and FKA106 Suspension kit

16)

Tenere happy Kit!, Combo~



2015-Yamaha-Super-Tenere3

17)







18)     tractive_promo_sticker

TOURATECH SHOCKS for the Tenere (Non ES -version )



These are Nice Shocks! When the Majority or your Ride is Off Pavement, more whoops and fully Loaded to the max, Consider These well made Shocks! They  start a few hundred or more higher than the Ohlins YA013 and have nice features that some enjoy.



Expedition Series  msrp $1495.00 (Single piston design).



Extreme Series msrp $1795.00 ( PDS Dual Piston design)





19)

Elka  design  ( Hi/Lo Compression, Rebound , Preload Adjust)



With or without Hydrualic spring remote preloader .



20)


Yamaha Elka Tenere Stage 5 Design , Hi/Lo Compression , Rebound, With Or With Out Hydraulic Preloader



21)

Penske Yamaha Tenere Shock , Threader Preload Adjustable Only

( No Hydraulic Remote Spring Preloaders on ANY PENSKE Shocks currently Only Spanner Spring adjustment)

Series 8983 Dual Adjust ,Series 8987 Triple Adjust

22)

Penske Yamaha Tenere Shock , (built to order )

Series 8983 Dual Adjust



Series 8987 Triple Adjust



Optional Spring rates lbs: 700lbs,750lbs,800lbs,850lbs,900lbs,950lbs



23)
