Yamaha FZ09



2017_yamaha_mt09_ohlins-shock-_ktech_nitron_sale_cartridge-kit-s46dr1s_s46dr1c1s

1)

2017 FZ09 /Mt09



Ohlins Shocks and more…



 2)



Yamaha FZ09 /MT09



2017_yamaha_mt09_ohlins-fork-cartridge-kit-shock-s46dr1c1s

3)



2017 Yamaha FZ09, still same throwaway shock  but slightly updated 41mm fork but nothing to write home about…





Ohlins YA535 and FGK237 combo IMG_4771

4)



Plan A- “The Full-Monte” ~ Ohlins front and back Combo with all the bells and whistles!~ BAM!



Above the FGK237 30mm kit with fork springs and the Ohlins YA535 fully adjustable shock COMBO



(See details below…)

2017_fz-09_ohlins-suspension_cartridge-kit-shock

5)

6)



Simple but Excellent Ohlins…( See Below)



img_6316

7)



“The-Plan-B”~ SURPRISINGLY AFFORDABLE!  Swaps to the YA335 S46DR1 Shock  SAVES $500.00 or so.


Ohlins Shock BASE MODEL, with 46mm Fatty Shock Body with 16mm heavy duty Shaft ,

DIVIDED Fluid & Nitrogen  (not emulsion type where mixed) 45 Click Damping Adjustment

*Multiple Spring Rate Options for ANY  Weight range, FREE to Swap when NEW  PURCHASE

Ohlins Full Fork FGK-30mm Cartridge Kit with Ohlins Springs and Fluid , Fully adjustable.





Stock Non Rebuildable FZ 09 Shock

8)



Above the stock shock throwaway!



Great Bike! Horrible Suspension! Super Cheezy throwaway Stuff!



Super Soft Throwaway Shock! and fork internals! (and stamped steel fork cartridge from 20 years ago SEE BELOW)



2017_yamaha_mt09_ohlins-fork-kit-_shock-s46dr1s

9)

2017 FZ09



kteck-ids-fork-cartridge-kits-with-springs-sale-discount



10)

“The Plan-C “ -Uses the excellent IDS Kteck Fully Adjustable 20mm  4 port cartridge kit with the base model Ohlins S46DR1 shock – Saves another $425.00 or so from “Plan B”.



IDS Ktech Kit (also sold separately) with springs, a super nice 20mm , 4 port fully adjustable kit with springs.



These currently come in at $895.00 with springs.



Above a very well made IDS (Independent Damping System 20mm) so left leg does about 30 clicks of compression adjustment, right leg about 30 clicks rebound adjustment all from top caps.



ids-kteck-preload-adjustable-caps-cartridge-kits

11)



Shown above is the 20mm preload and  about 18-20 turn preload range.



Fully adjustable Compression (32 clicks) , Rebound (32 clicks) inside the 14mm socket hex bolt preloader with a 3mm allen drive.





Ktech-IDS-Kit-FZ09-FJ09-MT09-with-fork-springs-rates

12)



A great option and can be paired with any design rear shock.



Kteck-IDS-Fork-cartridge-kits-with-springs-Sale-Discount

13)





ktech-kit-fz09-ids-kit

14)







Andreani__cartridge_Ohlins _FZ09_Scambler_Combo

15)

Maybe “Plan D?” saves another 225.00 or so?

This is the base model Ohlins YA335 (S46DR1) and Andreani 20mm Fork Kit Combo, One of the least expensive options ~









16)



FZ09





2014 Yamaha FZ9 MT09 YA335 with 8422-90 Springs Fork

17)





Ohlins YA335  S46DR1 Shock /DIVIDED internal Piston (no need for external reservoir)



Shown With OHLINS Fork Springs for The Standard Yamaha Forks use number 8422-90(300mm long)



* Ohlins Full Cartridge Kit uses different springs not the same use this #8423-90)





Ohlins YA535 IMG_4768

18)





Above, the Ohlins YA535 is available with the Addition of a compression adjustable reservoir and a hydraulic remote spring preloader as shown.





YA535 Ohlins IMG_4759

19)



Shown above YA535 Preloader knob and Compression adjuster.







Ohlins YA535 and FGK237 combo IMG_4771

20)



Above the FGK237 with fork springs and the Ohlins YA535 shock COMBO.





21)

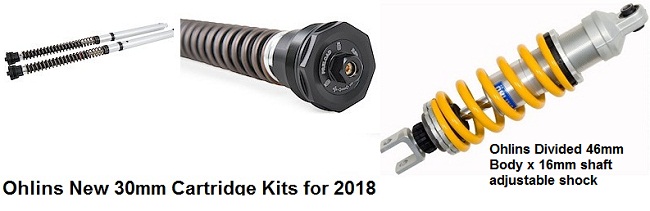

Ohlins Front Fork 30mm Cartridge Kit FGK230 or the New # FGK237  and Spring Set #8423-90



(Requires 1 Liter Ohlins 1309-01 Fluid) Has Adjustable  Compression, Rebound, Preload.





22)



Standard Yamaha FZ09 Fork with Super soft Springs ( claimed std bikes test springs only .74 kg peak)





23)



On LEFT (Arrow) standard FZ09 Stamped Steel 20mm Cartridge,



On RIGHT (Arrow)  OHLINS  30MM Cartridge (50% bigger piston area and 1 lb lighter )





24)





OHLINS cartridge and springs ONLY 4.5LBS! (1 lb lighter than stock ) but 50% LARGER 30mm pistons.





25)





Standard FZ09 20mm Stamped STEEL cartridge 5.5LBS (1 lb heavier) than OHLINS 30mm Kit.





26)



FZ09 With OHLINS 30mm Kit, Adjustable 18 Turn Preload caps, Compression and Rebound with firmer Springs.



27)





Ohlins 30mm FGK230 or New # FGK237  Adjustable Compression LEFT cap , RIGHT  cap Rebound , Both 18 turn Spring Preload.





img_6317

28)



29)





Yamaha FZ09

30)



Above is the Ohlins (20mm) “FOR THE STOCK STEEL CARTRIDGE” 4 piston kit that has everything from the stem off, all though better it still leaves you with non adjustable compression and rebound from the outside (Except for 2017).



It’s way better in the FZ09 fork to just replace the whole cartridge and springs like listed above so everything within the shells are new from the top cap to the bottom bolt, updated and improved whole systems.





Ktech SSK front frk system

31)



We also sell other Piston kits, many from the stem off as shown above and are very good. This would go into the standard Yamaha steel 20mm cartridge like the piston kit above also



All though better it still leaves you with non adjustable compression and rebound from the outside (Except for 2017).



It’s way better in the FZ09 fork to just replace the whole cartridge and springs like listed above so everything within the shells are new from the top cap to the bottom bolt, updated and improved whole systems.





Elka FZ 09 Shock Pro

32)



Opps! NOW NO LONGER AVAILABLE! SOLD OUT / ALL GONE!



ELKA FZ09 Shocks



Stage 5 TRIPLE ADJUST (Hi/Lo, Rebound , Length )
Stage 4 DOUBLE ADJUST (Low Compression , same Otherwise  )

Shocks FZ 09 Shock Ohlins Elka Nitron Penske

33)

 Opps! NOW NO LONGER AVAILABLE!

Elka Stage 5 Shock FZ09, Hi/lo Compression , Rebound and Length adjustable.

Andreani__cartridge_Ohlins _FZ09_Scambler_30mm Kit

34)



Above these are Andreani Cartridges (20mm) with Adjustable top preload, compression, rebound, a nice upgrade for a great price of only $599.95 with springs per rider weight.





35)



Penske 25mm Fork kit with Springs msrp $1250.00  /  Install msrp Penske $250.00





36)



Pic PENSKE RESERVOIR MOUNT

FZ09 Res Mount

8983 Penske Double Adjust  Remote Reservoir

  FREE / Shipping 48 USA

8987 Penske Triple Adjust Remote Reservoir

 FREE / Shipping 48 USA

8983 Penske INLINE Double Adjust  NO- Remote Reservoir

 FREE / Shipping 48 USA




 37)





Nitron FZ09 Shock

38)

These are the new Nitron FZ09 Shocks above, available with D1,D2.D3 and / or Hydraulic preloader.

Listed Below Options

(40mm body / 14mm shaft) Ohlins and many others are 46mm bodies and 16mm shafts.
NTR R1 M-14/40-GS-D1-L……
NTR R1 + HPA M-14/40-GS-D1-L-HP1……
NTR R2 M-14/40-H-GS-D2-L……
NTR R2 + HPA M-14/40-H-GS-D2-L-HP……
NTR R3 M-14/40-H-GS-D3-L……
NTR R3 + HPA M-14/40-H-GS-D3-L-HP1…….

(46mm body/16mm shaft)
NTR R3 Race Pro M-16/46-H-GS-D3-L…..
NTR R3 Race Pro + HPA M-16/46-H-GS-D3-L-HP1…..

39)



Yamaha FZ 09 GRP DAMPER



40)

Steering Damper GPR



2017_yamaha-_ohlins_kit-shock_fork_cartridge_mt09_ktech_ids_nitron

41)



2017  FZ09/ MT09
