34) HARLEY DAVIDSON SHOCKS!

We Sell lots of Harley Shocks (see below…),



ohlins-nix-22_hd_51

1)



Ohlins HD044 New FLH FLT Shocks S36HR1C1L_Touring_Road Glide_Strret Glide 2014_2017_2018

1A)

BAM!- Brand New Ohlins HD044 , S36HR1C1L 2014-2018 FL Touring, (Road King, Street Glide, Electra Glide).

2017 Harley Street Glide Ohlins Fork Kit Shocks S36DRL HD159

2)

2017 Harley Davidson Street Glide Most Popular Shocks!

HD772 (blackline) and HD159 (Type S36DR1L), See more info below…





Ohlins FKS212 Cartridge Kit TTX Nix

3)

Above New Release Ohlins FKS212 Cartridge Kit



Ohlins HD141 S36PL

4)

Above Ohlins HD141 S36PL





Ohlins FKS206 Harley Fork Cartridge Kit w Springs

5)

Above Ohlins New FKS206 Harley Sportster Cartridge and Spring Kit





Ohlins S36DR1L HD781 Shocks Harley Vrod

6)



Ohlins Harley Vrod HD781 S36DR1L

2012-Harley-Davidson-FLHTK-ElectraGlideUltraLimitedz

7)

ALL are Custom Sprung and Done just for your Specific needs and rider weight, solo baseline, two up, and loaded with luggage as you need, with all the latest updates from Ohlins and others. Since some shocks and fork kits are very custom it’s best to just call in when ready to discuss and order.

FREE SHIPPING lower48 and NO TAX O/s (Note: Ohlins & others Only let us post Suggested List Price on Web Pages)





8)

We use the latest Data from Ohlins to custom suit your Specific Needs, since we correspond with Ohlins Every day for many years, and have done shocks for over 30+ years, your shocks will have the latest updates and settings from us, so shocks are shipped ready right out of the box with the latest presets that matches the Ohlins latest updates.

Ohlins shocks are fully serviceable and rebuildable for many years, when ready you can send them directly to us if you prefer as we are a fully stocked Factory Authorized Service Center building shocks every day for over 30 years!



9)

Below NEW Ohlins Shock List March 15, 2017! (reminder 25.4mm=1″)

NEW Harley List MArch 2017

Harley

10)

 Pre 2017 OLDER Ohlins List With Discontinued Items Ohlins-Harley-Shock-List





hd1594-ohlins-sept-12-2016

11)



Example Above Popular Ohlins HD159(4)= latest and greatest version available!

We have the latest versions exactly preset just for you,

These are the newest 4th revision that sold 2017~On~ BAM!

The latest PICS of What Your shocks will look like!, PAN DOWN PAST (far below , all the way down to to floor…) the Ohlins “Pop-UP” Grid below has more “generic” pics.

(Real Pics of Shocks?…now that’s a good idea…we update them to be as current as possible..)

harley-dyna-s-tracker-fork-kit-with-springs

12)



Tracker Fork Kit with Springs, fully adjustable external spring preload, compression and rebound, no machining, can be owner installed.



Ohlins NIX-22_HD_5

13)

(Above) You can tell that no other brand in the industry has machining this nice , fit and finish of their products, with true function and detail that works.

Ohlins  kit, transforms your 1970’s Harley damper rod forks info fully adjustable cartridge valving and piston port style, adjustable compression (about 30 clicks), adjustable rebound (about 30 clicks), adjustable spring preload (about 18 turns) or 16mm range), ALL AT TOP CAPS!

“DYNA” and “SPORTSTER” type bikes NEW RELEASE  COMING SOON Fork NIX22 Fully adjustable cartridge kits!



Ohlins Blackline harley Shocks

14)

*Ohlins will have 3 Dyna Kits and 3 Sportster kits when all said and done.

New release for “DYNA and “SPORTSTER” (Total Sweetness!) shown this is the Ohlins NIX22 Kit, replaces almost everything in the fork with fully external adjustable spring preload, compression and rebound with a fully dampened cartridge and real valving, piston design for the best ride quality.

(“Say-Bye-Bye” to your 1970′ stock Harley fork damper rods )

First Applications Part Numbers to be Offered so far (others may soon to come) :

FKS 205 Harley-Davidson 2006-2016 Dyna Wide Glide FXDWG Cartridge kit / kit 851mm/33.50″
FKS 206 Harley-Davidson 2007-2016 Sportster XL1200N Nightster Cartridge kit /752mm/29.60″
FKS 206 Harley-Davidson 2007-2015 Sportster XL1200X Forty-Eight Cartridge kit / 752mm/29.60″
FKS 206 Harley-Davidson 2007-2016 Sportster XL883N Nightster Cartridge kit/ 752mm/29.60″
FKS 212 Harley-Davidson 2006-2016 Dyna FXD Cartridge kit / 816mm / 32.12″
FKS 213 Harley-Davidson 2016-2017 Sportster XL1200X Forty-Eight Cartridge kit /755mm /29.72″

(Note: or FLH and FLT see below FKC~ popular Ohlins Fork Kits and springs have been available for years)

*Ohlins will have 3 Dyna Kits and 3 Sportster kits when all said and done.



ohlin-harley-fks206-fork-kit-with-springs

15)

Ohlins FKS206 kit, transforms your 1970’s Harley damper rod forks info fully adjustable cartridge valving and piston port style, adjustable compression (about 30 clicks), adjustable rebound (about 30 clicks), adjustable spring preload (about 18 turns or 16mm range), ALL AT TOP CAPS!



Harley Fork Kits Ohlins Tracker Dyna Sportser

16)

These are a very well made option, CLICK HERE or  above PIC for DETAILS and Applications. These are about $848.95-895.00 with springs.

FORKS FULLY EXTENDED, OFF GROUND, Measured from axle center to top of fork tube edge of chrome tube, and then by fork tube diameter either 39mm or 49mm.

Choose from 29.5”, 30.5″, 31.5″, 32.5”, 33.5″ and 35.0″ lengths.

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 39mm SHOWA 29.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 39mm SHOWA 31.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 39mm SHOWA 32.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 49mm SHOWA 30.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 49mm SHOWA 31.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 49mm SHOWA 32.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 49mm SHOWA 33.5″

FF CARTRIDGE TRACKER** HARLEY DAVIDSON 49mm SHOWA 35.0″

Multiple spring rate options please call to discuss your application!



Below, Available right Now,  Andreani 20mm Harley Fork Kits with springs, Only $599.95!

Andreani__cartridge_Ohlins 20mm kits with springs

17)





harley-road-glide-shocks

18)





HD159 Ohlins IMG_4661

19)



Above, the Ohlins HD159 are still the most popular shock last five years and in 2016~

From Solo to 2-Up Riding and loaded, simply add 4.5 To 6.5 turns spring preload each shock, and increase the adjustable rebound damping about 4 turns, it’s that simple!

The HD159 shocks are “DIVIDED” fluid and Nitrogen (Not Emulsion style where the fluid and nitrogen are mixed like most other brand shocks like a Root-beer ) so Ohlins is fade free with 45 click fully adjustable damping from solo to loaded.

(see below more details and pics…).



HD022 Harley Ohlins Aug 12 2016

20)



HD022 Ohlins Shocks, basically a simple version eye-to-eye length (12.99″) but not divided and non rebound adjustable but less expensive option for some with loading that would be in range of these.

A HD039 is 12.24 ” but otherwise same.



HD220 Ohlins Shocks Harley

21)

HD220

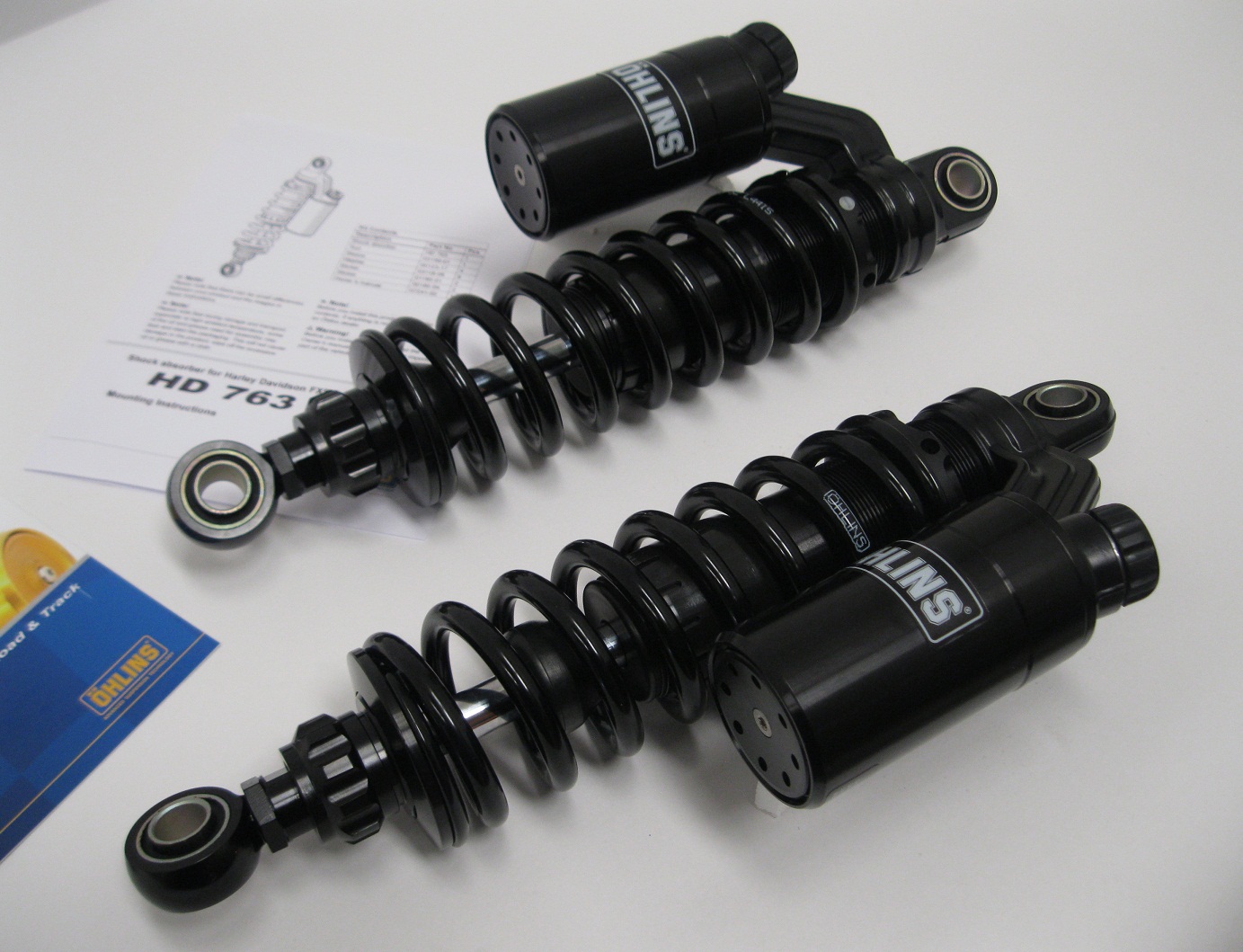

Ohlins HD762 Blacline Harley Shocks S36DR1L

21)



Above popular Ohlins Blackline Shocks for Dyna and Sportster (also available in silver).

They  HD762 (adjustable 12.00″ – 12.40″long) or 305mm-315mm eye-to-eye, divided fluid and nitrogen (Not your typical emulsion design where fluid and nitrogen are mixed like “root-beer” in the main body) with 40 + clicks rebound and length adjustable.

Ohlins is well known for the most premium shocks and they have been by far the most popular Harley-Davidson choice in the several years once word got out on how well they work and have a fade free long lasting rebuildable design with many features and adjustments including divided fluid and nitrogen instead of those foamy mixed fluid nitrogen emulsion types from the past.

If you like to actually ride your bike as much or more than just looking at it, consider these excellent well made shocks.

They are easy for owner installs and self adjustments for suspension that makes a tremendous difference. You do need to know how to do that and follow the manufacturers instructions and install guides.

Unlike other brands with standard or only One step heavier springs, these shocks come with many optional spring rates in adjustable Straight Rate or Dual Rate Progressive Springs for various rider weights and loadings.

They also have a larger range of usable easily adjustable spring preload options
(other brands that only have three position cam that’s usually not enough).

The prefered type also features Adjustable Rebound Damping  (50+ clicks! ) with heavy duty 14mm shafts,  so you can easily make them less bouncy and more controlled under many conditions by a simple external adjuster, some types also offer compression damping adjustable.





Harley HD 159

22)

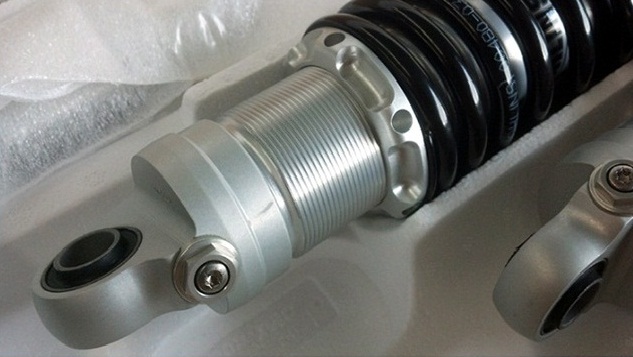

Our most popular seller (shown above) is Type S36DR1L, fully rebuildable and tunable, made to out last the bike! and over 10+ spring options!

Eye-to-eye (so that’s adjustable length  12.75″ to 13-1/8″ or 329mm+5mm/-5mm) approximately 50+ clicks of Rebound Adjustment.



Ohlins HD 772 Harley

23)

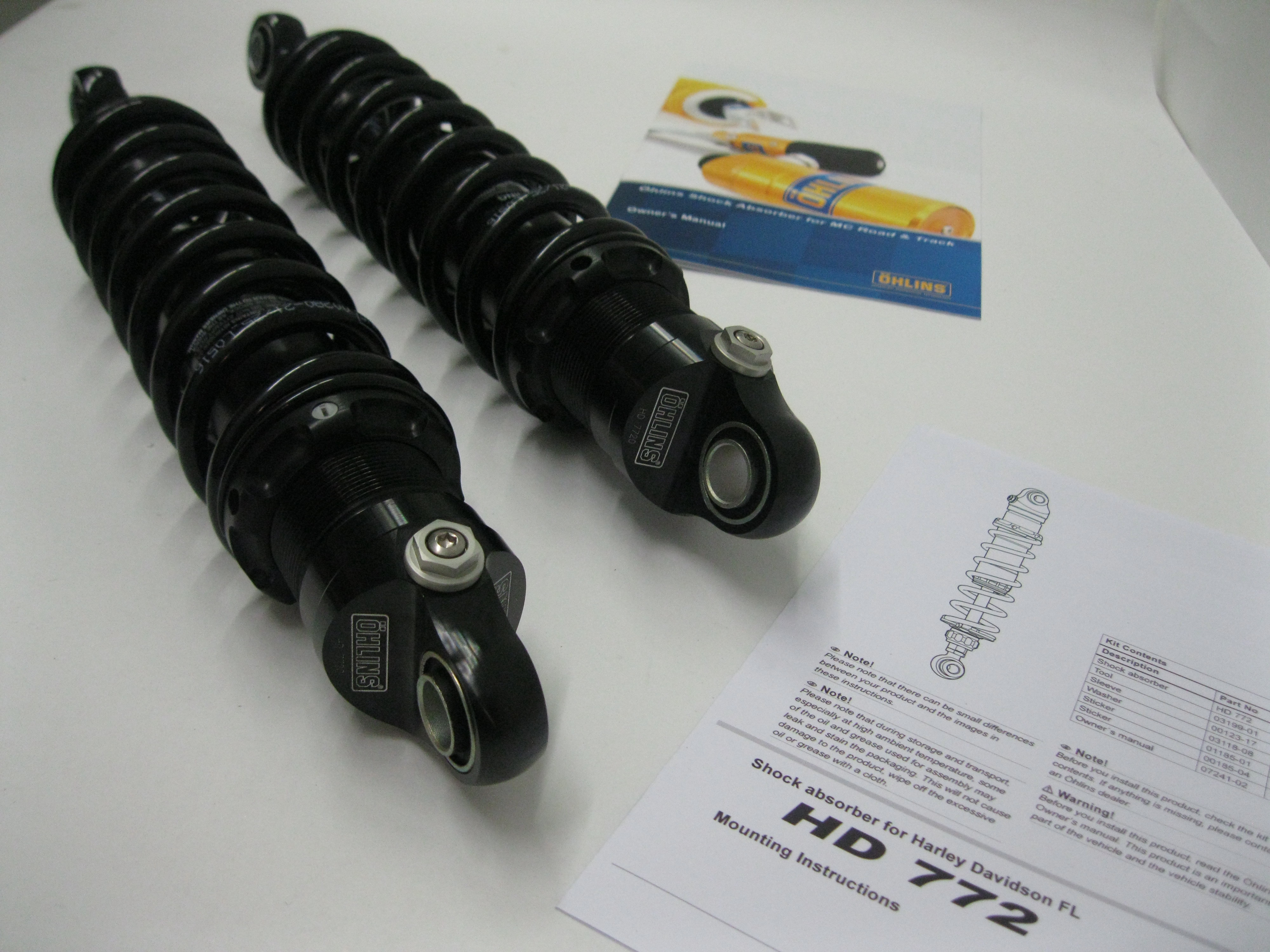

Available in Blackline HD772 (basically same but black version of HD159).

They also have divided fluid and nitrogen via a floating internal piston, so the are virtually fade free and longest lasting brand instead of typical shocks that mix the fluid and nitrogen in one main tube known as old fashioned Emulsion types that are non-rebuildable.





Harley makes three basic suspension designs. The third letter (or block) normally indicates the suspension of the bike, such as:

D Light framed “Dyna” swingarm suspension
ST Light and Heavy framed Softail suspension, and
H Heavy Touring Suspension (usually air assisted)

The Road Glide is an exception to this rule, as it carries no suspension code and is simply designated as FLT. Don’t ask me why. More On Harley Letter Codes Here

Note: On below pop-UP PICS chart, We used as many as possible Actual but below this Table are Real Shock PICS to also..

Far  BELOW “THIS” POP-UP CHART IS MORE REAL PICS of SHOCKs and KITS as Sold~

(So pan down with your smuggy finger All the way to the floor….)

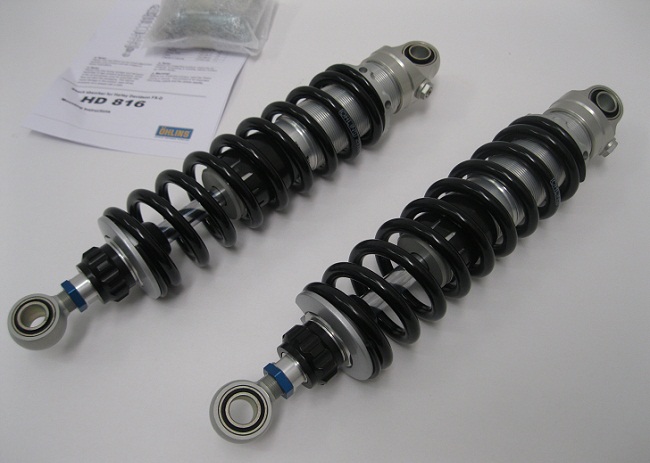

Model***** Year Part # Type Length Stroke Image
FLH/FLT*** 1995-2016 HD 159 S36DR1L 12.75″-13.14″ 3
FLH/FLT*** 1990-2016 HD 022 S36E 13 1/8 3 ¼
FLH/FLT*** 1998-2013 HD 357 S36HR1C1 12.89″-13.28″ 3 ¼
FLHX Street Glide* 2002-2016 HD 039 S36E 12 1/8 3 ¼
FLD Switchback* 2013-2016 HD 816 S36DR1L 12 ¾+-1/8 2 5/8
FXD Dyna 1991-2016 HD 215 S36PR1C1LB 13 3/8+-1/8 3 1/2

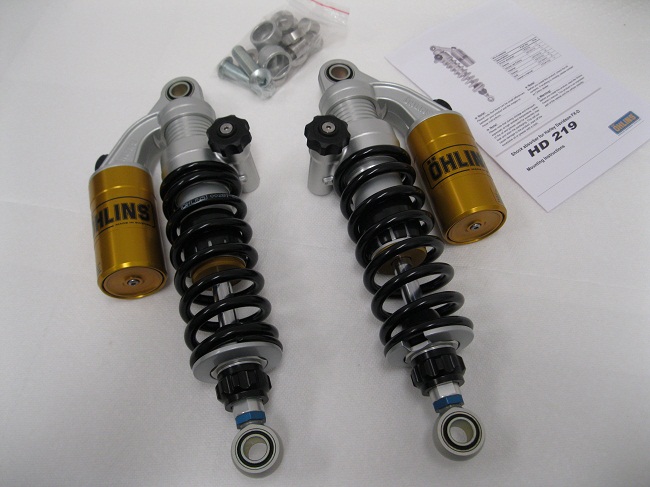

FXD Dyna* 1991-2016 HD 219 S36PR1C1LB 12+1/4 2 1/2
FXD Dyna* 1991-2016 HD 216 S36E 12 2 1/2
FXD Dyna 1991-2016 HD 220 S36E 13 3/8 3 1/2
FXD Dyna** 1991-2016 HD 816 S36DR1L 12 3/4+-1/8 2 5/8
FXD Dyna* 1991-2016 HD 817 S36DR1 12 2 3/8
XL Sportster**** 2004-2016 HD 141 S36PL 13 1/4+1/4 3 7/8
XL Sportster**** 2004-2016 HD 143 S36PR1C1LB 13 1/4+1/4 3 3/4

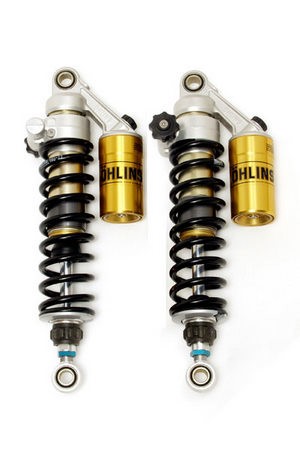

XL Sportster 2004-2016 HD 142 S36PL 14 1/8+1/8 4
XL Sportster 2004-2016 HD 144 S36PR1C1LB 14 1/8+1/8 4
XL Sportster* 2004-2016 HD 145E S36E 11 3/8 2 3/4
XL Sportster**** 2004-2016 HD 916E S36E 13 1/4 4 1/8
XL Sportster 2004-2016 HD 146 S36E 14 1/8 4 1/8
XL Sportster**** 2004-2016 HD 906 S36DR1L 13 1/4+1/4 3

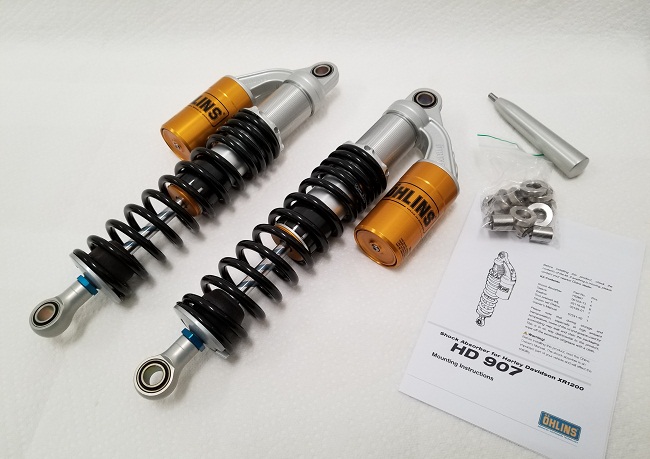

XR1200 2009-2013 HD 907 S36PL 13 1/4+1/4 3 7/8
XR1200* 2009-2013 HD 908 S36PL 14 1/8+1/8 3 7/8
XR1200 2009-2013 HD 852 S36PR1C1L 16 3/8+-1/8 3 7/8
VRSCA V-Rod* 2002-2006 HD 928 S36DR1L 12 1/2+1/4 2 5/8
VRSCDX Night Rod Special* 2007-2012 HD 928 S36DR1L 12 1/2+1/4 2 5/8

24)

***** Some shock lengths in combination with some modifications may not be compatible.
* Factory length
** Factory length of Wide Glide 1993-2008
*** Factory length all except Street Glide
**** Factory length R only
Ohlins Shock Type Code:
S = Single Tube
36 = Piston Diameter
E = Emulsion Type
D = Gas-Type with Internal Reservoir
P = Gas-Type with Piggyback Reservoir
H = Gas-Type with Remote Reservoir
R1 = Adjustable Rebound Damping
C1 = Adjustable Compression Damping
L = Adjustable Length
B = Integrated Hydraulic Preload Adjuster

Ohlins Sportster and Dyna Fork cartridge kits New

25)



Coming Soon 2016 ~

Above OHLINS NEW NIX Fully adjustable fork kits “SPORTSTER” and “DYNA”

Customer Shock and Fork kit Pics  Start Here and SEE below……….

BELOW More REAL SHOCK and FORK KITS PIC’s as Sold~…..(See Below)

26)

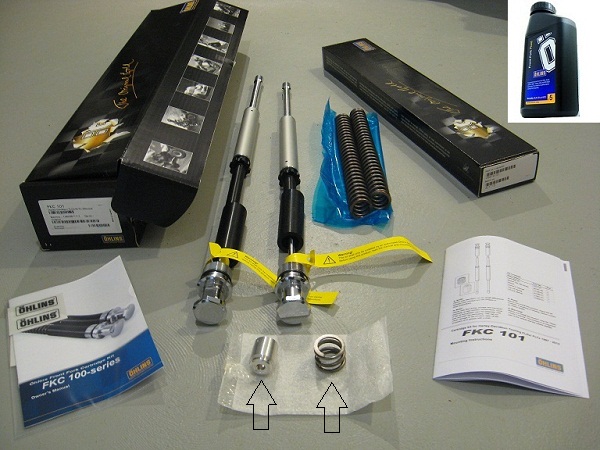

FKC101~ Harley FLH/FLT 1997-2013 (41mm Forks)

Ohlins Complete Cartridge kit FKC101 & Springs set Standard Length(above arrows show extra cone and top out spring only used on some models 2002-2005+- (See Below Pic 16 for more info)

(Also available in 1″ lowering kit and 1.30n/m springs for those who want that otherwise standard length is most common)


Requires only 1 liter Ohlins  fluid (19cst) that is recommended because now the fork will be a real cartridge system with real pistons and valving shims type not just a damper rod with a couple holes in it from the 1970’s!

This transforms your 70’s style damper rod and oil forks into a fully modern cartridge from the best company in the business!

FLH/FLT  (most all 41mm fork years)

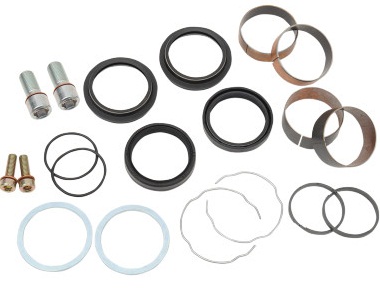

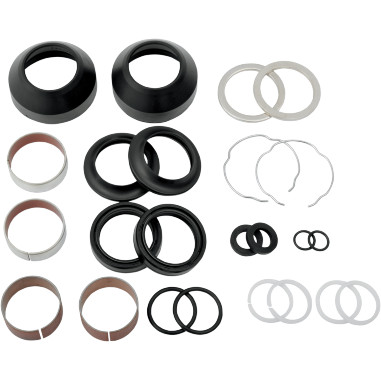

41mm Fork Seal & bushing Service Kit                                       Split Seal driver



27)



(click)for FULL Application listings here)                                              41mm Seals Only

28)

Pic Above is:

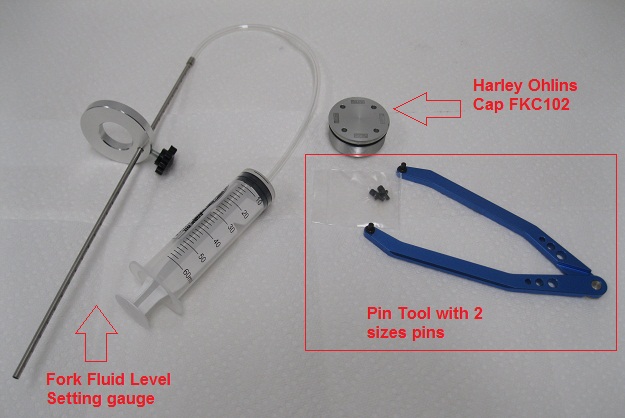

Pull Up Tool Rod (#1765-08 ) , Flat Plate Tool (#2810-03), Ohlins Fluid 19cst Fluid (#1309-01) Litre.

29)



FKC102~ Harley FLH/FLT (2014- On 49mm Forks)

Ohlins Complete Cartridge kit FKC102 & Springs set standard length, couple front spring options depending on fairing/windscreen weight or without.

Requires 2 Liters Ohlins Fluid (19cst) so you will have enough to work with  that is recommended because now the fork will be a cartridge with real pistons and valving shims  type not just a damper rod with a couple holes in it from the 1970’s!

This transforms your 70’s style damper rod and oil forks into a fully modern cartridge from the best company in the business!

              49mm Seals Only

30)

FLH/FLT & Others 49mm Fork Seal and bushing Service Kit



Harley HD 159

31)



(Above)

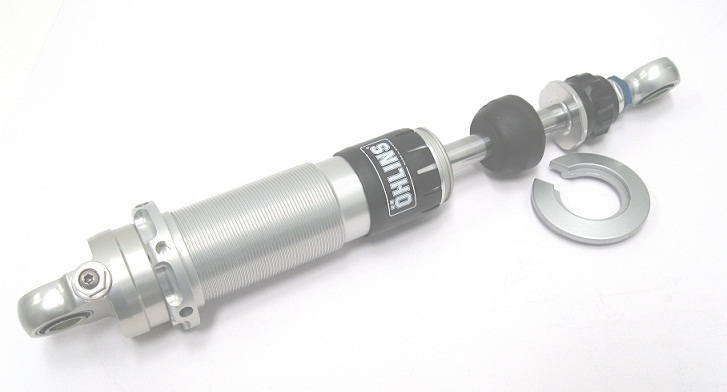

Popular Harley Ohlins  HD 159  S36DR1L, (36mm body /14mm shafts) 25 n/m 200mm spg

Eye-to-eye……. 329mm+5mm/-5mm  ( so thats adjustable length  12.75″ to 13-1/8″ )

Proper Shock, Spring, and preload Setup does allow shocks to Slightly Settle with rider weight for excellent ride.

Ohlins HD 220 Shocks

32)

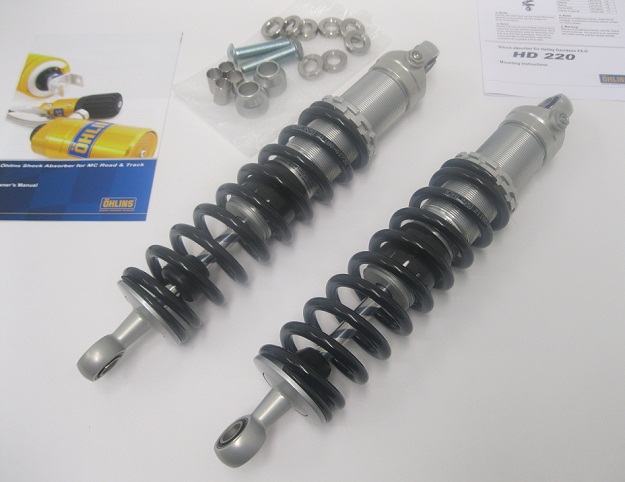

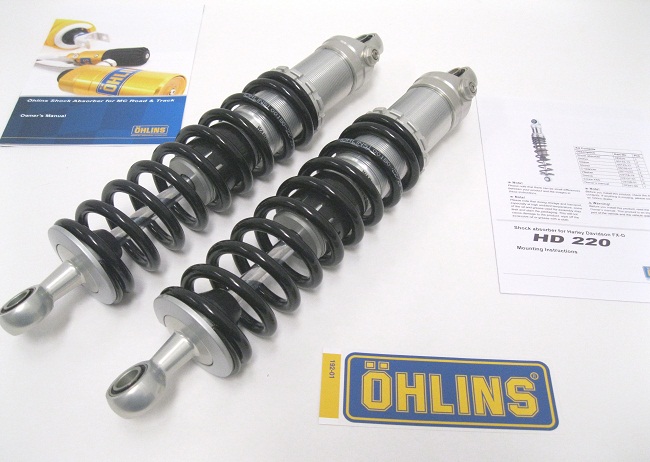

Ohlins HD220 (13.38″ eye-to-eye) or 340mm eye-to-eye.

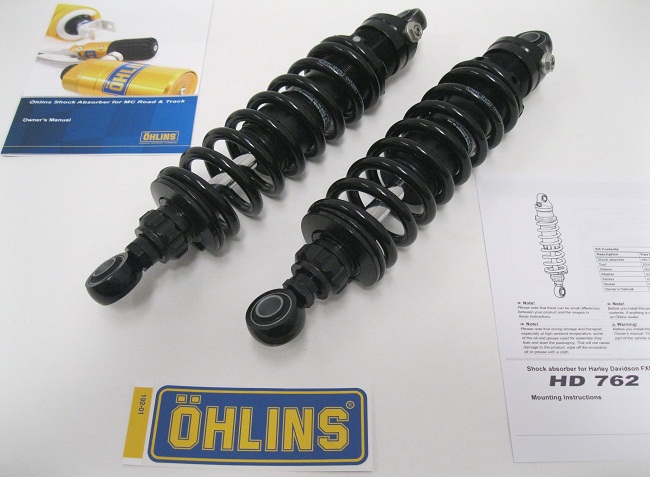

Ohlins HD 762 2016 IMG_3667

33)

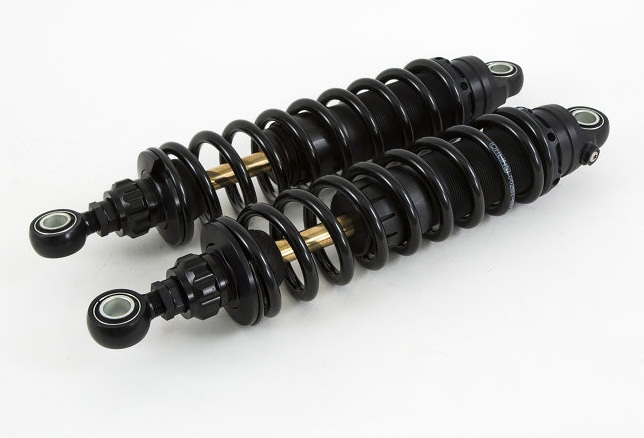

Ohlins Blackline HD762 (adjustable 12.00″ – 12.40″) or 305mm-315mm eye-to-eye, divided with 40 + clicks rebound adjustable.

34)

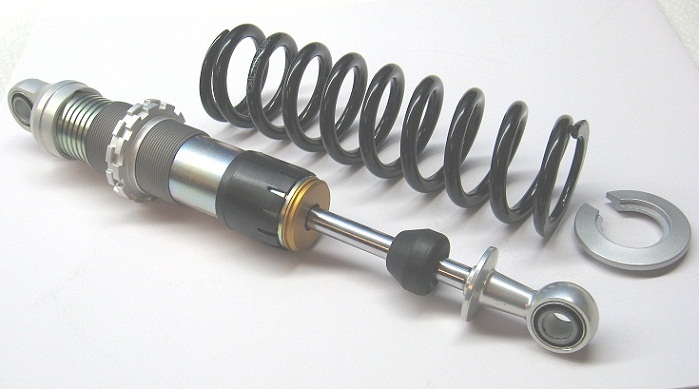

Ohlins S36E Pairs 36mm Body /12mm Shafts, No Rebound Adjust.

HD039  S36E (Eye-to-Eye 311 mm)  so that’s 12-1/8″ long

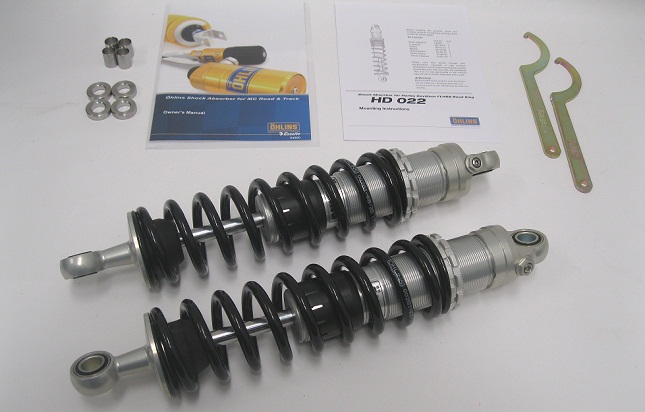

HD 022 Ohlins Harley Shocks

35)

HD022 S36E  (E

Eye-to-Eye 330 mm)  so that’s 12.99″ long

Ohlins S36E Pairs 36mm Body /12mm Shafts, No Rebound Adjust.

Ohlins Twin Shocks , DIVIDED FLUID and NITROGEN, Adjustable REBOUND and LENGTH Adjustable

36)



Harley FLH/FLT 97-2013 FKC101 Full Cartridge Kit Regular with 1.0 springs



37)





FKC101 Details ,

Reminder the Extra Top Out Spring and Cone (shown left) Only used when Forks do not have same in each leg so those will make it the same stuff in each leg when needed (mainly 2002-2005 and limited others) the Arrow above towards right shows a black spring coil cover.

38)



(as shown in Manufacturers Owners manuals)

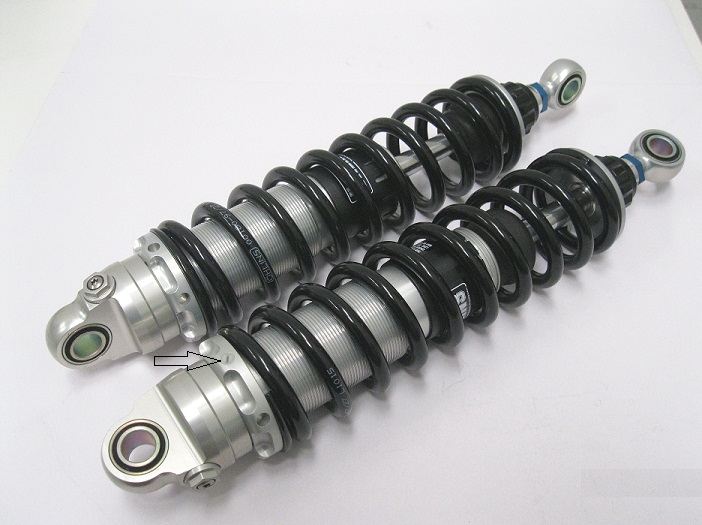

Top LEFT Arrow shows Spanner Nylon Set Screw, Loosen first, Turn Spring Preload collar (then reset).

Example Of Spring Preload:

Hd 159 with 32n/m 219mm free length spring / 9mm Standard Preload, arrow shows nylon white set screw.

(Loosen white set screw a turn or two, then turn aluminum spring collar to increase spring preload and  reset)

ADDING SPRING PRELOAD  by full turns Example :

This example below is IF started at 9mm preload stock before adding more.

Adding 2 complete turns to collar adds approximately 2 mm of preload on the spring (so your at about 11mm total)

Adding 3 complete turns to collar adds approximately 4.5mm of preload on the spring (so your at about 13.5 mm total)

Adding 4 complete turns to collar adds approximately 6 mm of preload on the spring (so your at about 15 mm total)

Adding 5 complete turns to collar adds approximately 7.5mm of preload on the spring (so you at about 16.5 mm total)

Adding 6 complete turns to collar adds approximately 9mm of preload on the spring (so your at about 18 mm total)

NOTE:

when adding spring preload (consult owners manual) may also Increase Rebound Damping in direction shown below.

39)

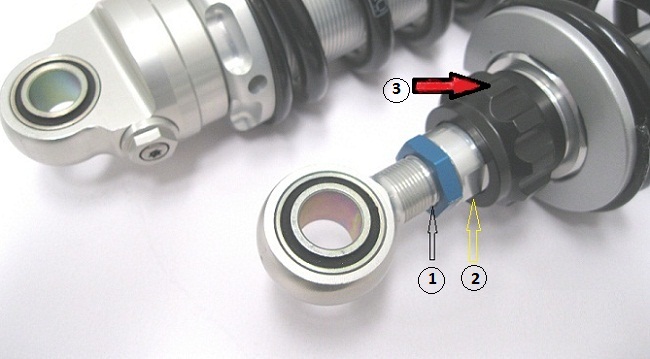

Adjusting Length usually done while shocks still on bike (as shown in Manufacturers Owners manuals)

Example: These shocks may have approx. 4.5 Turns of Length Adjustment.

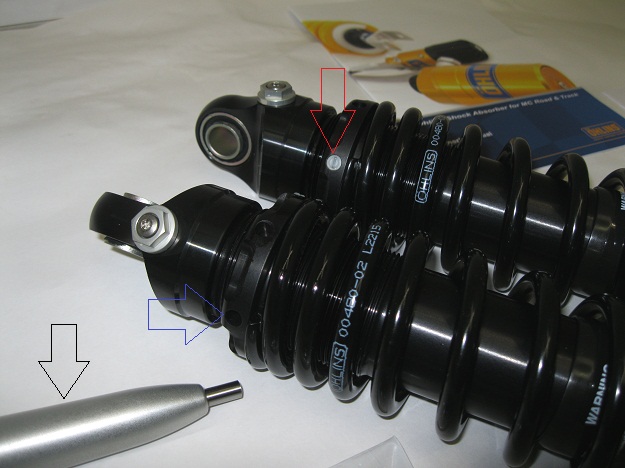

1) Arrow shows Adjustable length “Notch” to show stop point Near Blue (19mm wrench) Lock Nut.

2) Yellow Arrow  shows Stem (Turn Stem 17mm wrench) To Adjust Length of shock, then Re-lock Blue Nut).

3) RED Arrow  shows REBOUND adjust DIRECTION  to INCREASE Rebound Damping
(Example Hd159 may have 50+ Clicks rebound adjustment, so standard may be found by turning black adjuster in direction of RED Arrow until lightly stops (that’s ‘0’- then turn clicker other way and count clicks / approx. 18- 20 clicks out is about standard for example)

40)

Threaded Body detail



41)

Sample HD



42)

Sample HD



43)



FLH/FLT 1998-2013

Ohlins Twin Shocks HD357 (Eye-to-Eye 336mm+0/-10mm) so that’s Adjustable 12.83″ to 13.22″

These have adjustable Rebound, Compression, Spring Preload , and Length.

(Note: for 2014 bag mounts are different so reservoir install would require different way to mount/holes in brackets)

44)



Ohlins Twin Shocks HD357 1998-2013

(Note: for 2014 bag mounts are different so reservoir install would require different way to mount.)

(future version may also have longer hose or holes in bracket / or placement  of those holes)

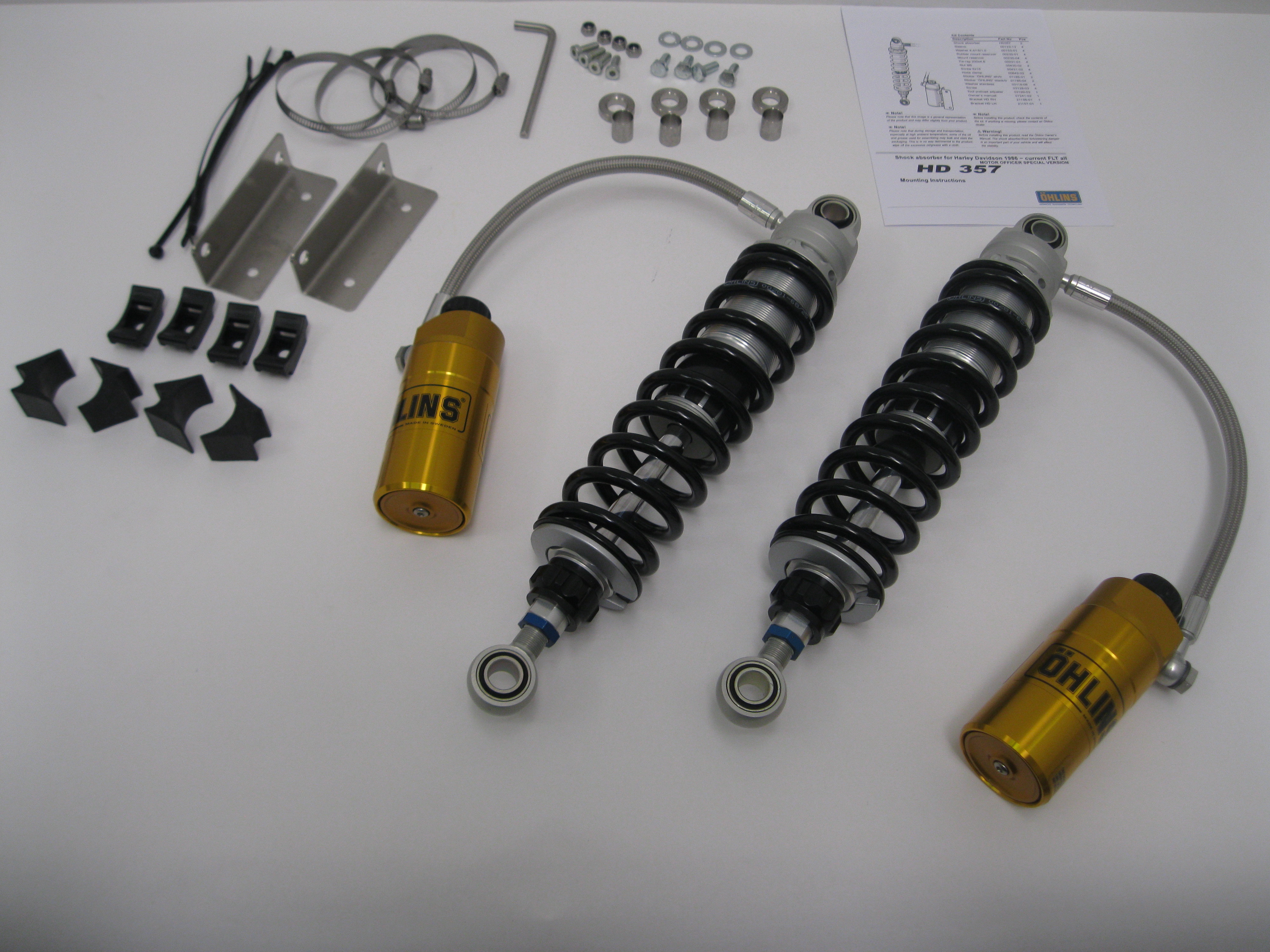

img_6190

45)

HD357 Ohlins

46)

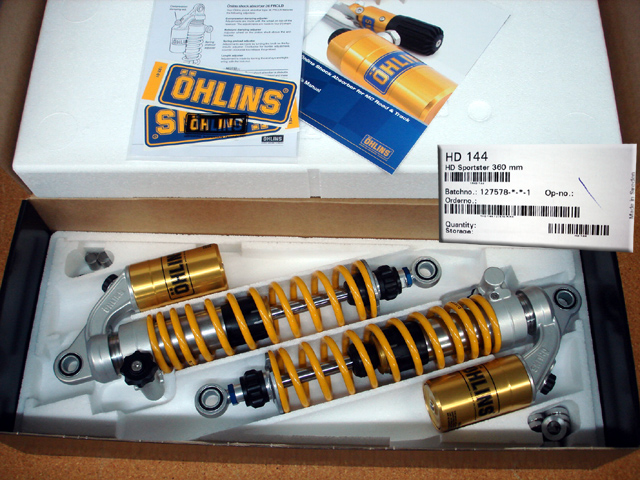

HD144 (shown with black springs) Adjustable Rebound,Compression, Length , and Spring Preloader’s.

They are 360mm Eye-to-eye, plus 10mm length adjust (so that can be 14.17″-14.566″ adjustable)

Note: All Adjustments except length can be done by just turning knobs, no tools

Spring  Preloader’s have 10mm Additional effect on spring preload, can also move clips every 4mm on bodies.



47)

HD144 (Shown with Yellow Springs)



 48)

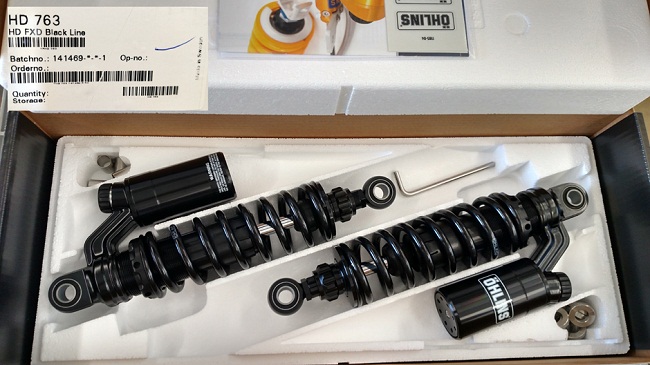

HD763



ohlins-hd-763-blackline

49)



hd 756 IMG_2249

50)



HD756 Harley XL Sportster, 336mm +10m Long, so thats’s 13.22″-13.62″  and have adjustable Rebound, Compression, Length.



51)

Ohlins BLACKLINE (Silver Shafts )

(Reminder 25.4m=1″ length below in mm)



52)

Reservoir Detail (Shown Decal is White /Black)



HD753 (2)

53)

Ohlins Blackline HD753, 336mm +10mm (that’s 13.22″-13.62″) Divided fluid and Nitrogen, Rebound and Length Adjustable (+10mm).

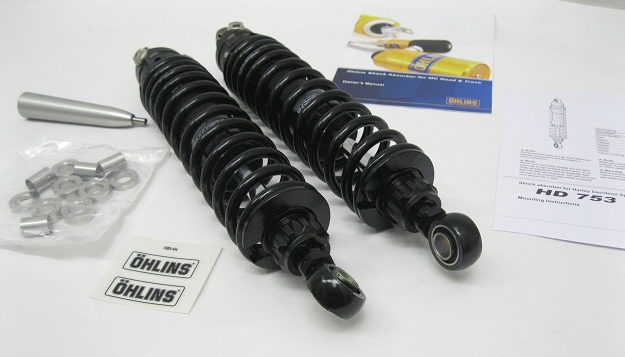

hd753-ohlins-blackline-harley-shocks

54)

Ohlins HD753 Blackline pic from  December 1, 2016.



HD753 (1)

55)

Preload Adjustment (as shown in Owners Manual)

Red Arrow loosen nylock, put provided tool (black arrow) in the spanner hole shown (blue arrow) turn as needed and retighten nylock.



hd772-sept-28-2016

56)

Above a  HD772 from Oct 1 2016 , Blackline Series shocks.

Same as HD 159 pretty much but color.



HD774 Ohlins

57)

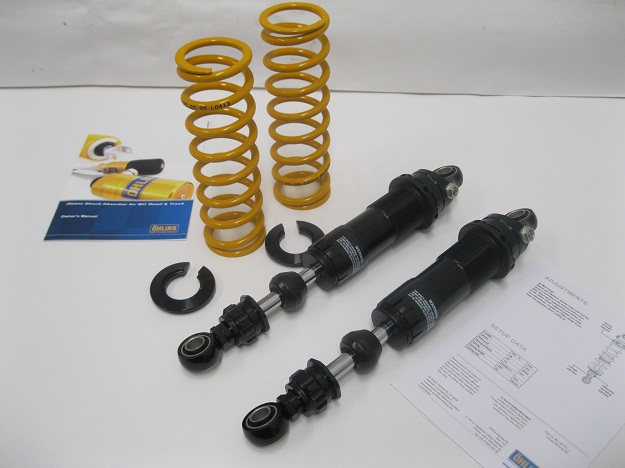

HD774 with Yellow springs.

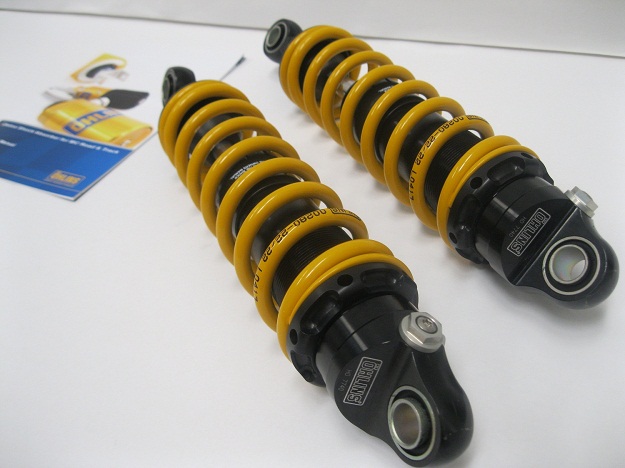

HD774 with Yellow 200m Spgs 22n

58)

HD774 with yellow springs.



IMG_4741

59)

HD774

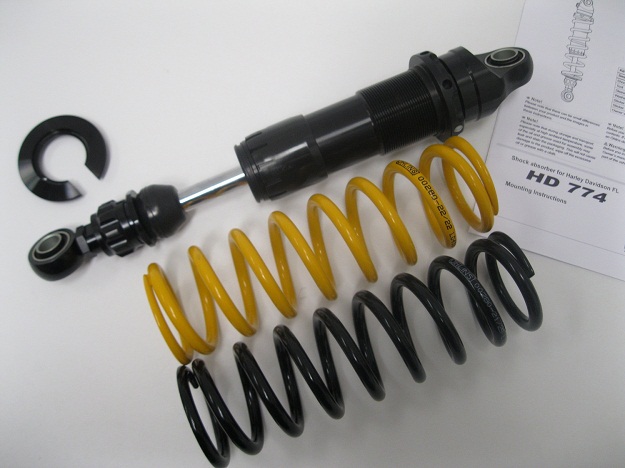

HD774 with Yellow Spgs IMG_4742

60)

HD774 with 200mm long springs





HD220 Ohlins

61)

Ohlins HD220 , (pic AUGUST 15,2016)





hd816-o

62)

Ohlins HD816 Shocks.





Ohlins Blackline

63)

Ohlins



Ohlins Blackline

64)

Ohlins

65)

Ohlins





66)

Ohlins

 67)

(Shown Above)

Harley FLH/FLT thru -2013 (msrp from $399.95 standard length / from $439.95 Lowering)

Progressive  Suspension  drop in Fork Cartridge Kits and Lowering kits comes with springs set.

68)

(Shown Above)

Progressive Suspension Heavy Duty Fork Spring Kits

69)

(Shown Above)

(msrp from $299.95 Black or Chrome / multiple length options )

Progressive Base Value  Model 412 Series Black or Chrome , standard or heavy, 5 position Spring preload cam, NON-Rebound Adjustable and Emulsion Not Divided Fluid -Nitrogen.



70)

(Shown Above)

(msrp from$ 624.99 Black  / from $ 669.95 chrome / multiple lengths available)

Progessive Model  444 Black or Chrome adjustable Preload, springs either  Standard or Heavy, Non Rebound Adjustable.

A design dubbed “Frequency Sensing Technology”(FST) for its unique ability to dynamically adjust damping as you ride. The result is superior performance no matter the road conditions. A top mount threaded preload adjuster allows for fine tuning with a simple twist of the cap.

71)

(Shown Above)

(msrp from $499.95 black /  from $544.95 chrome /  multiple lengths available)

Progressive Model 430 Series Black or Chrome Adjustable Preload, springs either standard or heavy only,  Non Rebound Adjustable.

2012-Harley-Davidson-FLHTK-ElectraGlideUltraLimitedz

72)
