Ducati Scrambler



2015 -On





(several different fit out looks but same base components underneath)



ducati-urban-enduro_ Ohlins

1)

Urban Enduro



Game changer ahead

Ohlins-Ducati-Scrambler-Gold Fork_DU505_Combo

2)

BAM!… Ohlins Forks with Triple Clamps, Axle, Hardware mounting kit and Ohlins Shock Combo!  It doesn’t get any Sweeter than this set! (Forks available in Gold or Black). See details and pics below…



Ohlins Ducati Scrambler Black Forks Kit





3)

Icon  (this bike would be great with Ohlins full suspension upgrade SEE BELOW…)



WP Ohlins 4CS

Ohlins DU 505 IMG_3757

4)

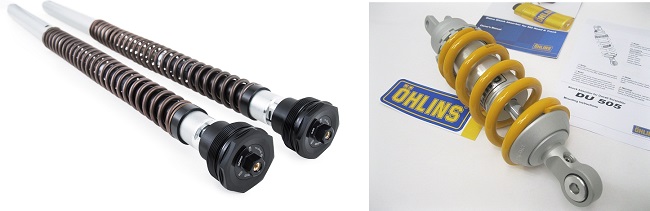

Ohlins S46DR1 /DU505 /46mm Body 16mm Shaft Divided Fluid and Nitrogen via internal floating piston with nitrogen one side and fluid other for fade free performance with  45 Clicks Adjustment.

Multiple spring rate options to suite any weight range,FREE to swap springs at time of purchase (Reg $100.00 value) , FREE Ship lower 48 USA, ships preset ready to install.



Ducati Scrambler Ohlins Forks with triple clamps and mount kit

5)

Two Ohlins Forks, Triple clamps, Axle, Spacers.

Ohlins Whole Forks with Ducati Scrambler Mounting kit including triple clamps, caliper mounts, axle, wheel spacers, fender mounts. SOLD as KIT ONLY Ohlins GOLD or Ohlins BLACK forks, your choice when ordering.



Ohlins Ducati Scambler Fork Kit (1)

6)

Ohlins Forks, Triple clamps, axle, brake caliper brackets and mount kit combo, transforms your bike into super Sweetness!





Ohlins Ducati Scambler Fork Kit (2)

7)

Ohlins Fork Bottom …BAM!





Ducati Ohlins Forks Gold 43mm

8)



Order this sweet Ducati Scrambler kit and enjoy!



WP Ohlins 4CS



Ducati Scrambler Ohlins Forks

9)

Ducati Scrambler with Ohlins GOLD Fork and Ohlins Shock combo, forks have gold bottoms and gold ti-Nitride upper inner tubes.



WP Ohlins 4CS



Ducati Scrambler Ohlins Forks and Shock

10)

The above kit is a Complete bike kit with special Ohlins spec forks with Triple clamps, axle and calipers sold as one unit, we also can do the Ohlins rear shock with it so everything is a matched set.

Black Ohlins Forks have black DLC coated inner upper tubes to match.



Ohlins Ducati Scrambler Forks IMG_3814

11)

Ohlins Forks are available in black these have DLC coating on the 43mm inner legs .





Ohlins Forks Ducati Scrambler IMG_3817

12)

The Ohlins forks are a work of art!



With about 45 clicks of rebound adjustment,  12 turns spring preload adjustment, and about 30 clicks compression adjustment.



Scrambler Ohlins forks IMG_3821

13)

Compression is adjusted by a 3mm allen at center of black hex base valve housing.





Ducati Scrambler Ohlins

14)

Ohlins Fork Bottoms







DucatiStoppierear_761web

15)

Ducati Scrambler 2015-On





DU 505 overall

 16)

Many Shock Options, consider a 46mm body 16mm Shaft Divided fluid and nitrogen Ohlins with preset and any custom spring solutions you may need, these are surprisingly affordable for the quality.



Andreani__cartridge_Ohlins _FZ09_Scambler_30mm Kit

17)

Above these are Andreani Cartridges (20mm) with Adjustable top preload, compression, rebound, a nice upgrade for a great price of only $599.95 with springs per rider weight.



Ktech-IDS-System

18)

IDS K-tech  or RDS  K-Tech Fork System with fork springs as needed.



These are 20mm Cartridge $895.00 WITH SPRINGS Now with several spring Options.



19)

Full Throttle



Ktech Bullet Shock Ducati Scrambler IMG_0158

20)

K-Tech Bullit Shock, Available in Three color SHAFT options , Gold SHAFT as shown msrp $579.95 ,  Silver SHAFT msrp $499.95, Nitrogen adjustable for different weight riders, sent preset ready to install as per manufacturers instructions.





IDS

21)

IDS System K-tech (Independent Damping System with adjustable preload)

Adjustable Compression Left Leg , Rebound right leg and Spring preload both.



22)





23)





Ducati Scrambler Shock Nitron, Ohlins,Penske, Kteck. Elka

24)

Nitron Shock,  14mm shaft /40mm body Gas separated , D1  (msrp $699.00)





Nitron Ducati Scrambler 2015 shk

25)

Nitron offers Ducati Scrambler shocks in several configurations and adjustments.



14mm shaft /40mm body ,Piggyback ,Gas separated ,D2 (compression and rebound adjust) msrp $975.00  , triple adjust add $ 100.00 (msrp $ 1075.00).



26)





27)

Ducati-Scram-Classic-2015

28)

Classic



29)



Ducati Scrambler Bullit Shocks

30)

Bullit Shock Shown on Ducati Scrambler 2015 -on



k tech Bullet Twin Shocks

31)

K-Tech Bullit Shock for Twins sold in pairs



32)



33)





Scrambler

34)



Ducati Scrambler types

 35)
