BMW R90s 1973-1976

Ohlins BMW R 90S Bm141 Shocks

1)

1973-1976 BMW R 90S  Air Head / 474lbs Bike / made 17,455 Units Sold



Ohlins S36P

2)

Ohlins super popular and best quality on the market BM141 S36P shocks!



Piggyback design with divided fluid and nitrogen via internal floating piston in reservoir for fade free long lasting performance, easily rebuildable and tunable with optional springs and valving per rider weight and conditions.





Ohlins Bmw 1976 Orange R 90S Ohlins



3)

The BMW R90S a 900cc sport motorcycle produced by BMW from 1973 to 1976.



Ohlins Bm 141 Twin Pair Yellow Springs Shocks

4)

Yes, Ohlins Shocks are also available with yellow springs.



BMW commissioned designer Hans Muth to oversee the R90S, which became the flagship of the boxer range.



BM141_resy_copy

5)

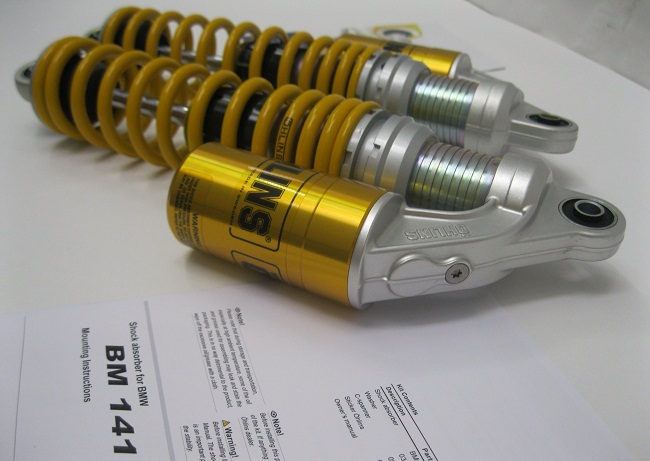

Ohlins BM 141 Shocks

6)

Preload adjustable with Three position cams and clips up and down the shock body, so any spring setting you like can be achieved.



Bmw r90s 1973-1976 Forks

7)

There are many dated forks out there like these above that need some updates, these are the standard 36mm Sachs conventionals.





IMG_2766

8)

With the standard soft fork springs, people added some primitive preload, the best solution may be an optional firmer progressive rate that has aluminum  preload spacers.





Bmw r 90s Fork damper rods std

9)

The standard fork damper rods can collect this kind of debris.





Bmw R90s Fork Tube Chrome

10)

The inner chrome fork tubes can loose their chrome all over from wear and exposure and can still be replaced today, we prefer original OEM BMW tubes for best results while available.



IMG_2383

11)

Replacing the bottom out bumper and all soft aluminum seal and crush washers is mandatory at rebuild time.



New Chrome Fork Tubes BMW

12)

So Above left is the NEW BMW Tubes, On the right are the worn out old ones, they can not be used.



BMW R 90S Forks Ohlins

13)

Above is when you assemble with Brand New BMW Tubes, SKF Blue fork Seals and all the new little stuff inside forks like the Aluminum and copper seal rings everywhere, bottom out bumpers in end cups, damper rod ring bands, etc. and New Optional firmer progressive fork springs with aluminum preload spacers.



Ohlins BMWR90S bm141 and Fork mods

14)
